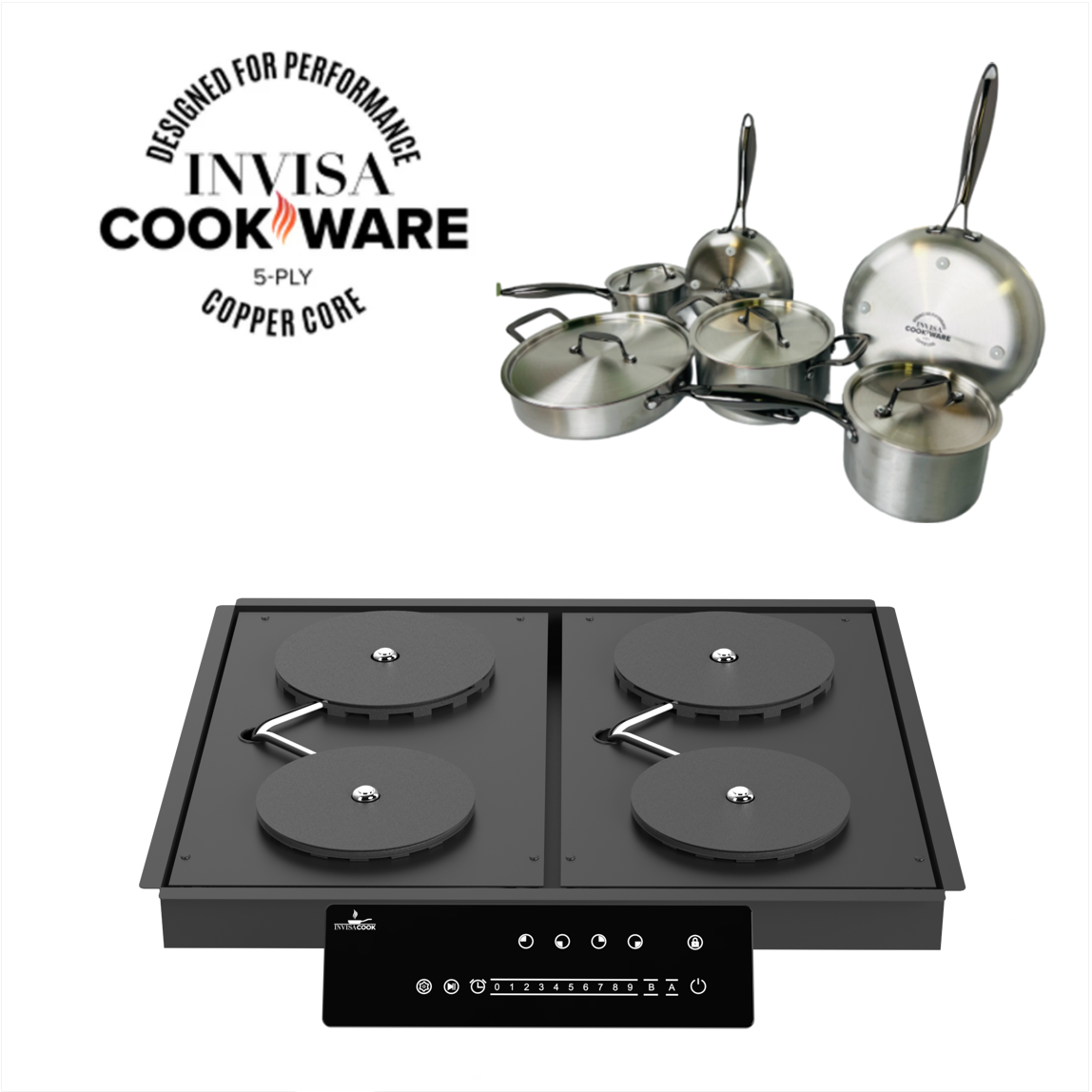

Invisacook 4 Burner 220 V
Invisacook 4 Burner 220 V
Couldn't load pickup availability
DESCRIPTION
Want to prepare meals with your kids and cook in the same space without worrying about burns? Invisacook 4 Burner Units are designed with your family in mind.

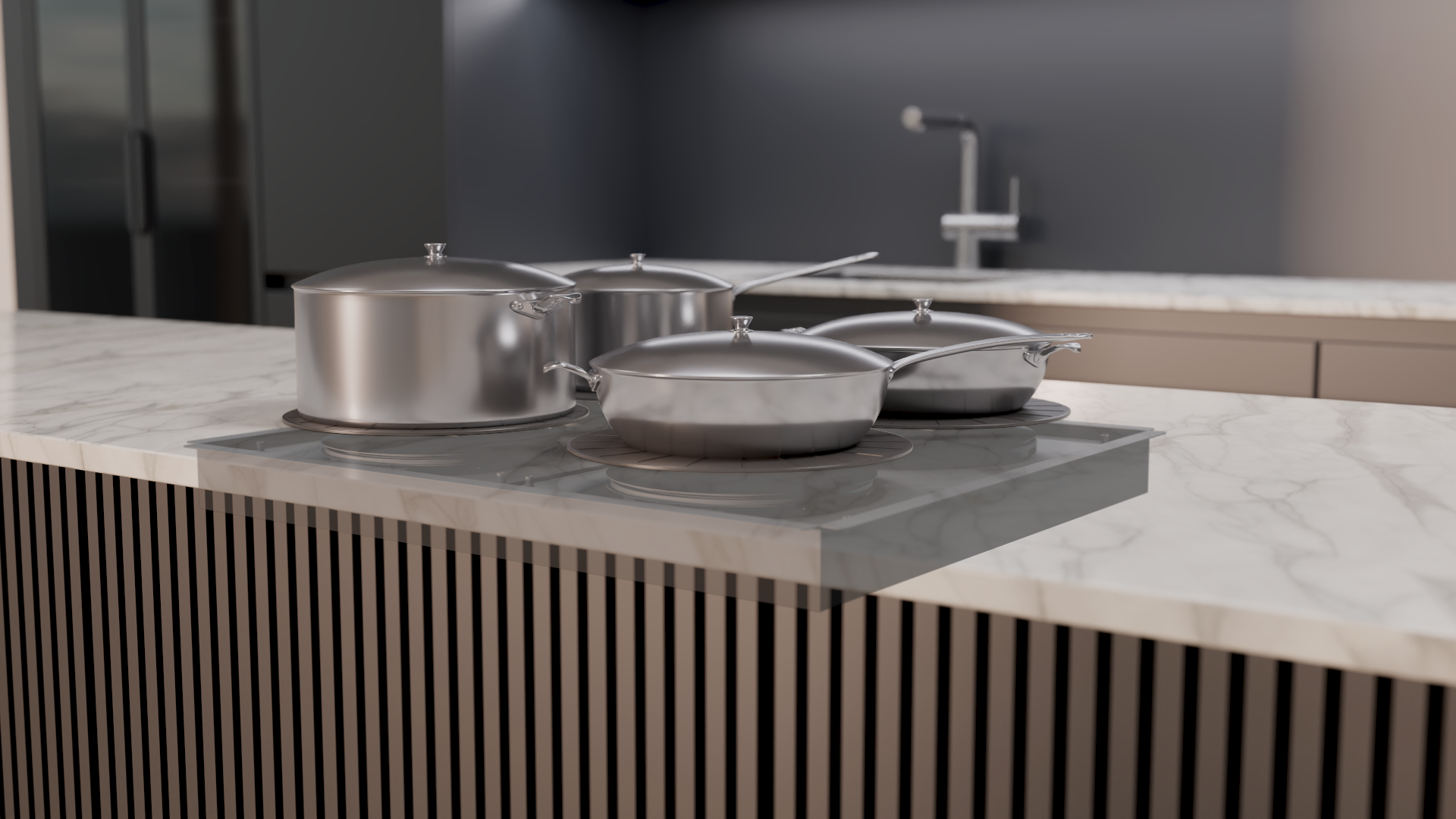

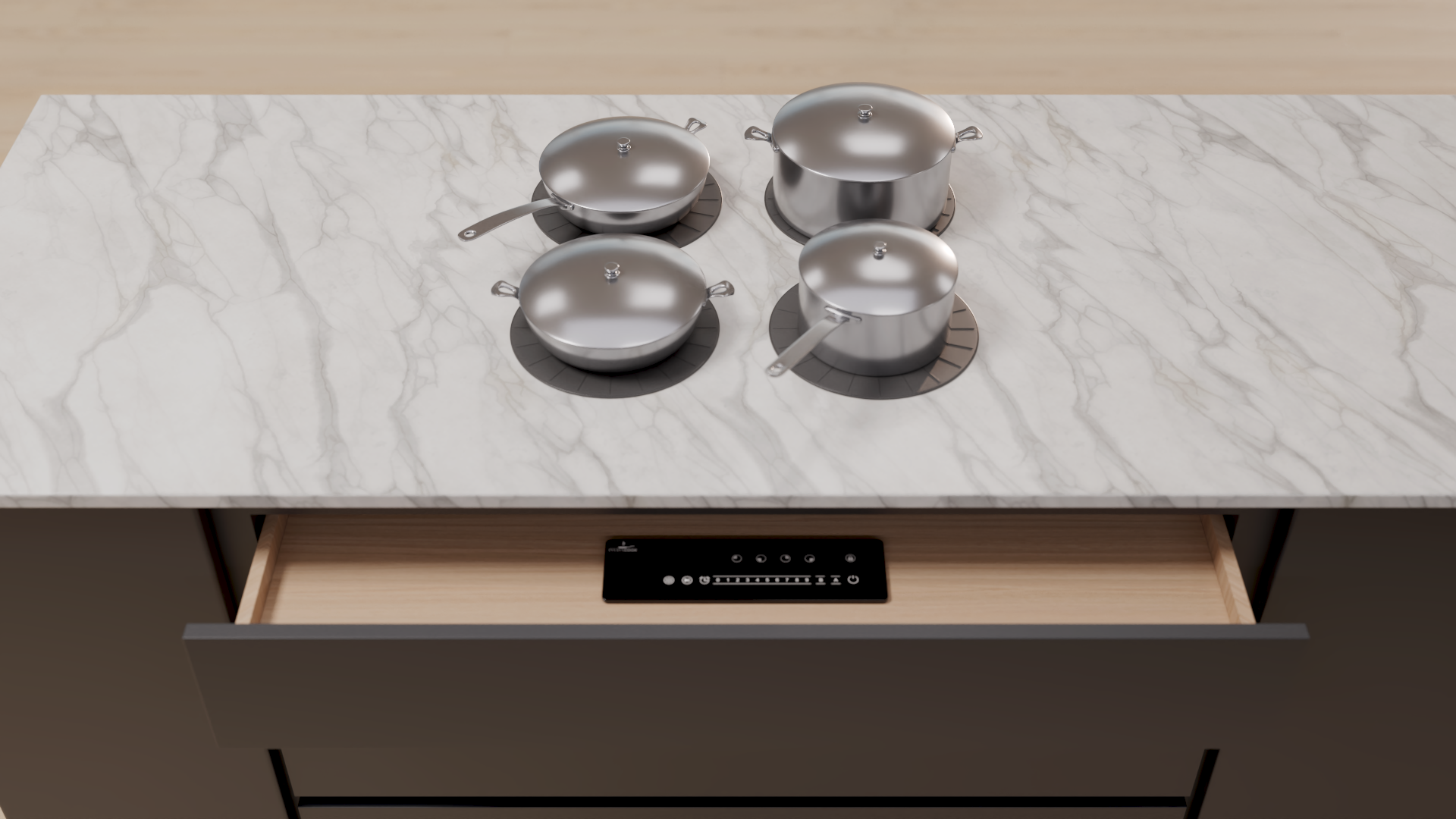

Durable and convenient, cook straight through your countertop, and in a matter of seconds, it's safe to touch. And the 4 induction points make cooking evenly child’s play.

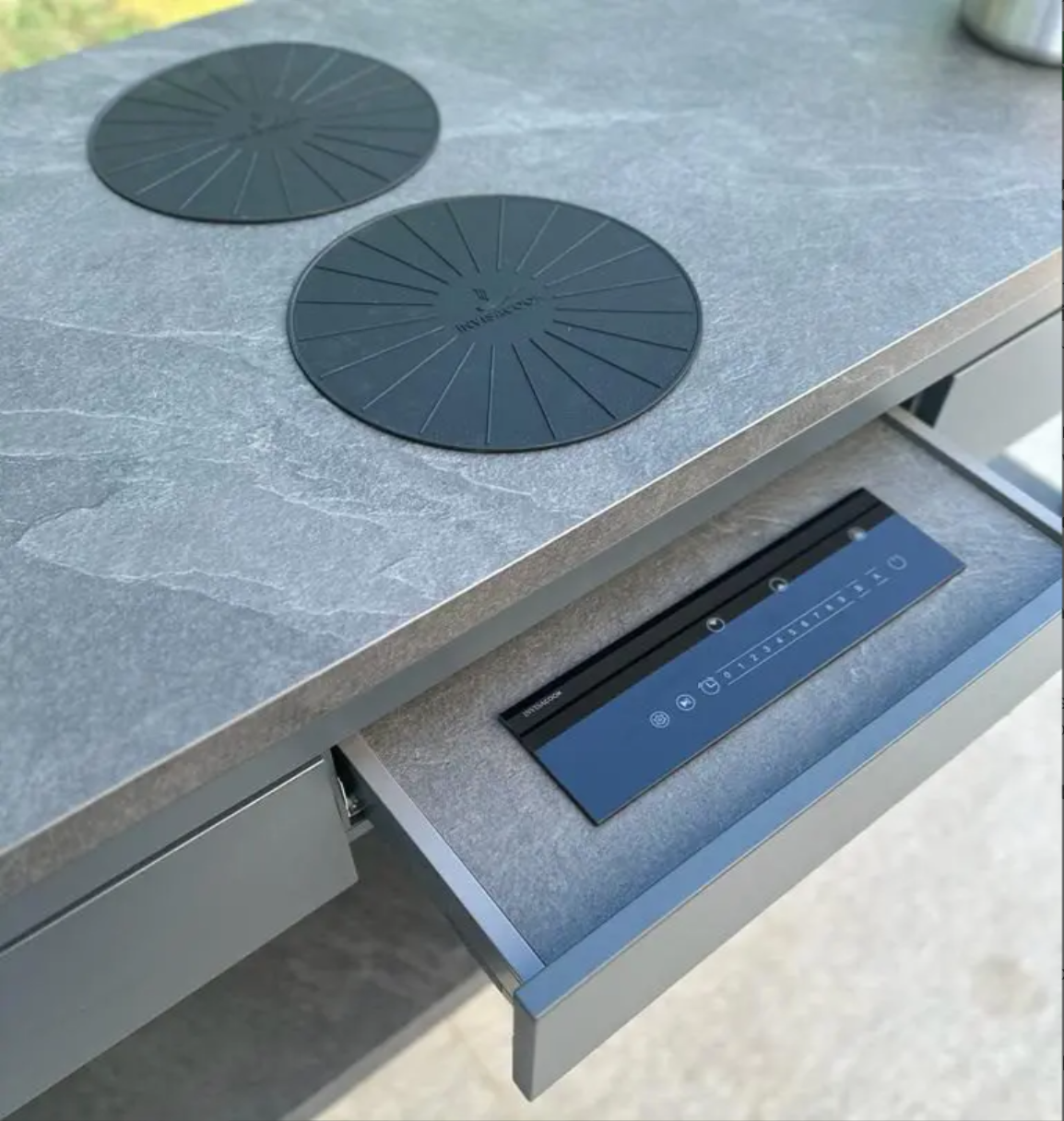

You can also control your cooking from any room, anywhere in your home though through Wi-Fi using your Invisacook App, or on the unit via a controller.
Sizes Available
Countertop materials:
Two countertop materials are recommended to be used with Invisacook:
Ultra-compact porcelain material that is 12mm thick brands such as (Magnifica, Sapienstone, Infinity Surfaces, Lapitec, Laminam, Neolith etc….). We recommend porcelain for best results. Granite, the all-natural stone, that needs to be milled to 1.5cm in the area of the cooktop. We recommend porcelain for best results.
Some other ultra compact surfaces and natural stones such as quartzite that is heat resistant can work case by case but are not recommended due to possible fragile nature of the stone or uneven heat distribution. For all natural stone materials, please refer to the Natural Stone Disclosure.
*Popular man made quartz countertops or natural marble countertops are not supported. Dekton install guide here.
FEATURES

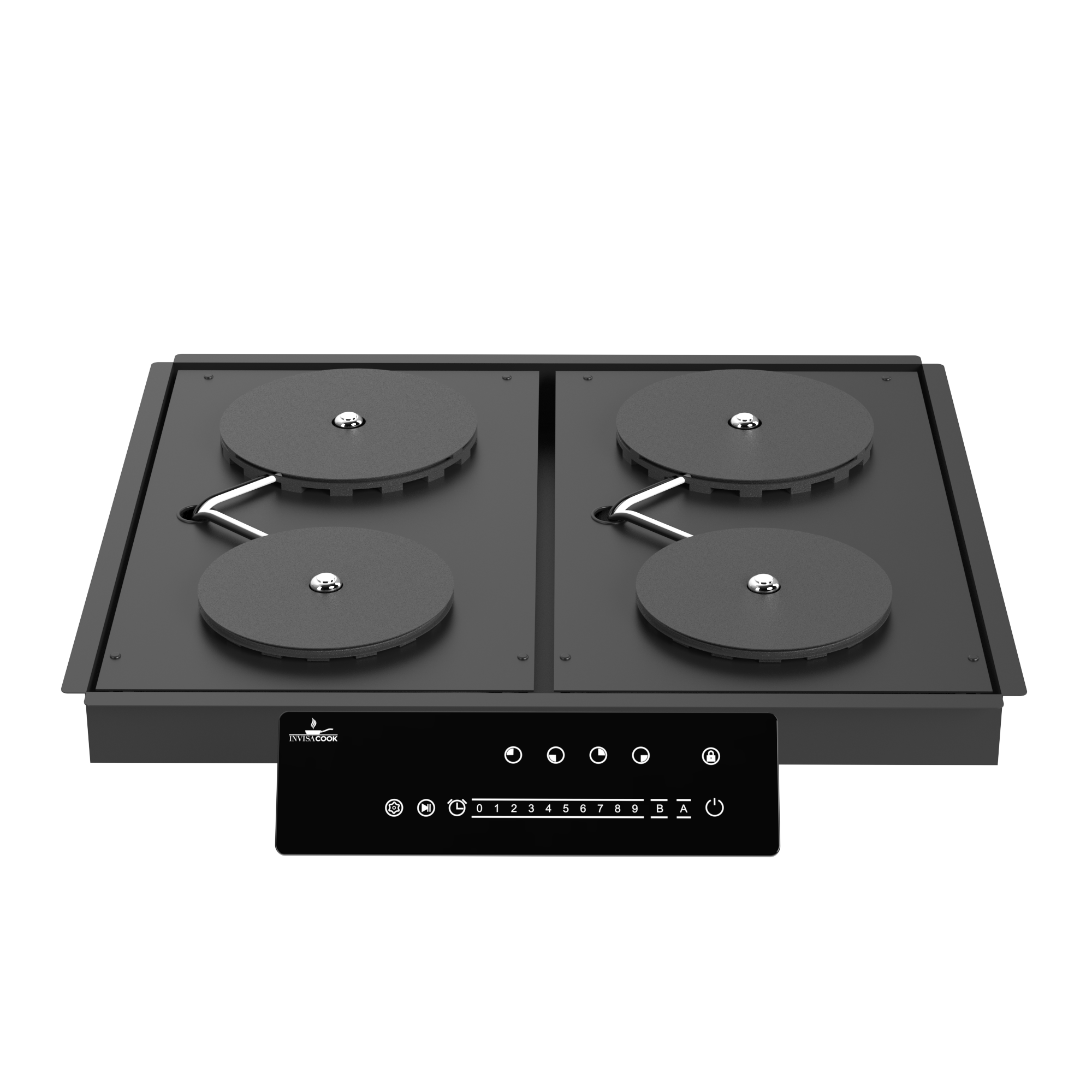

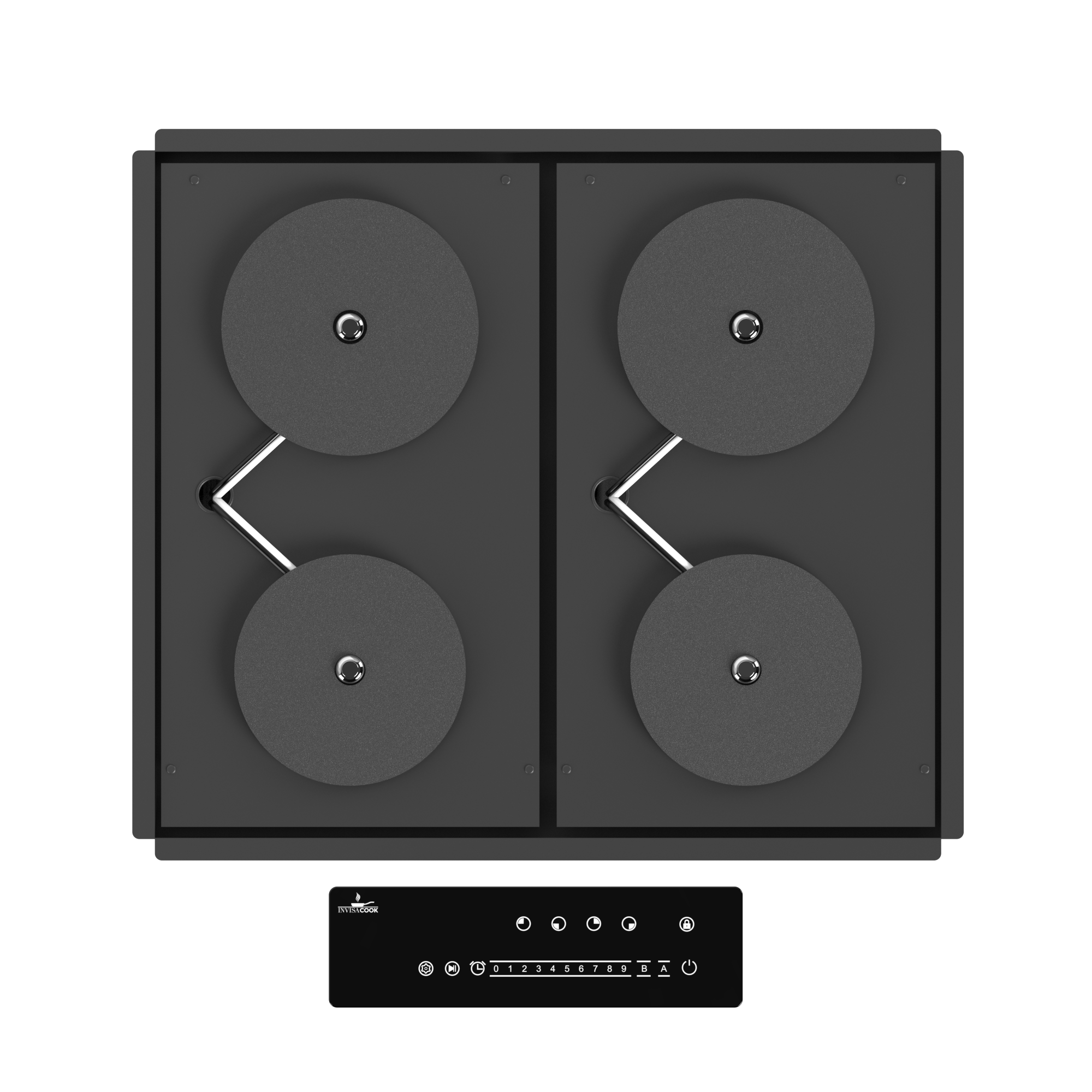

- 4 separate burning unit elements
- Power Boost option for faster speed.
- Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.

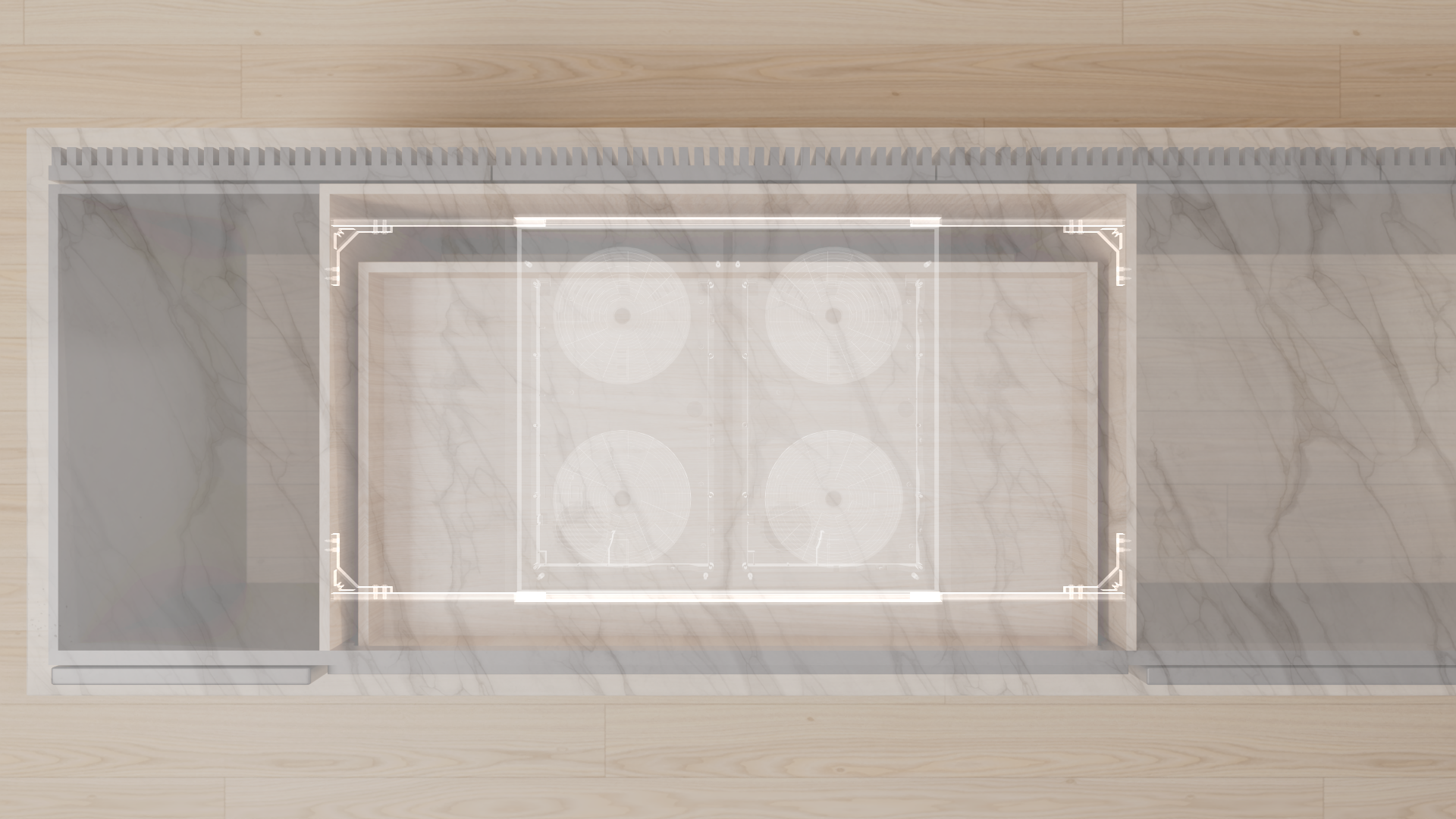

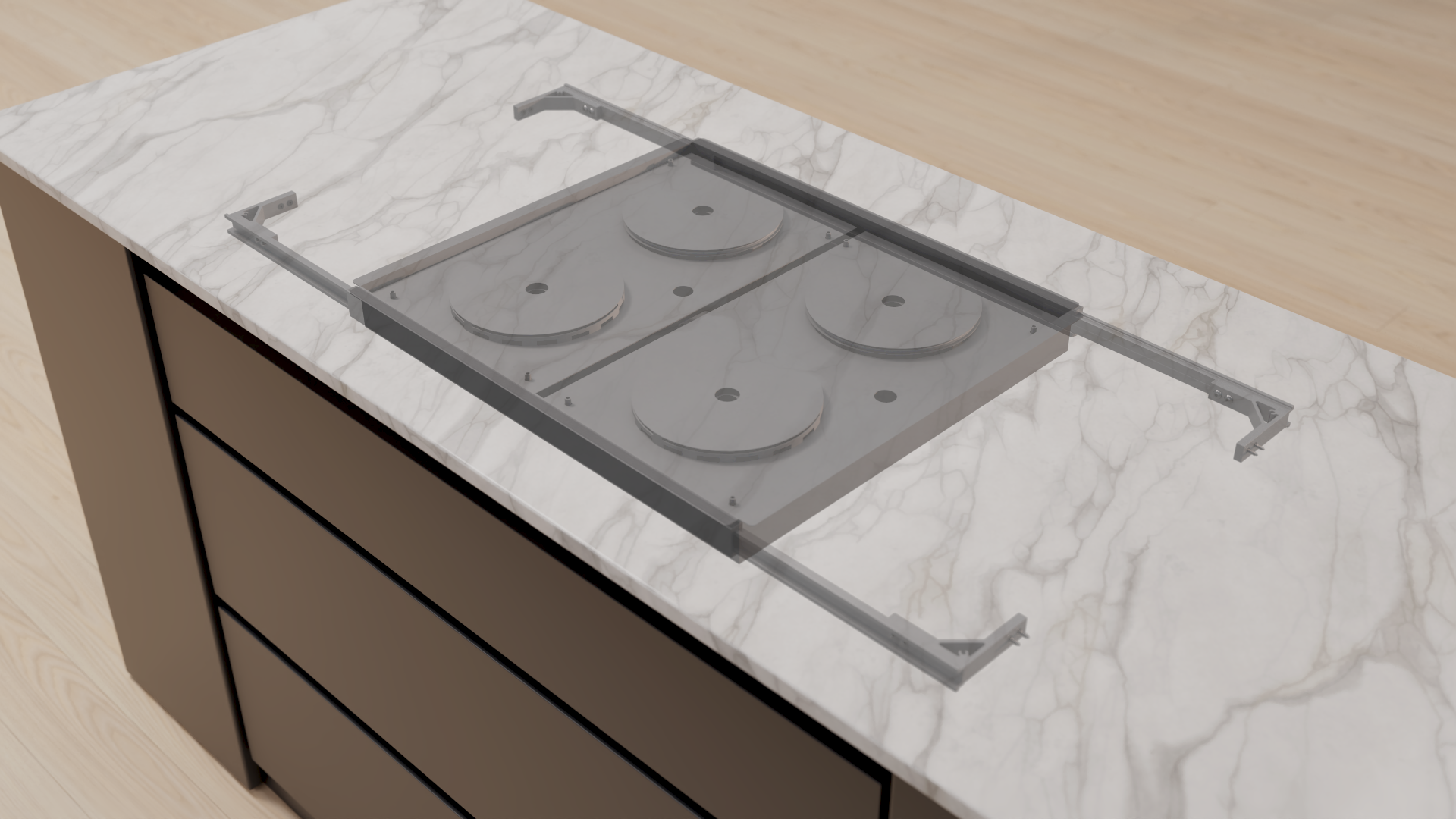

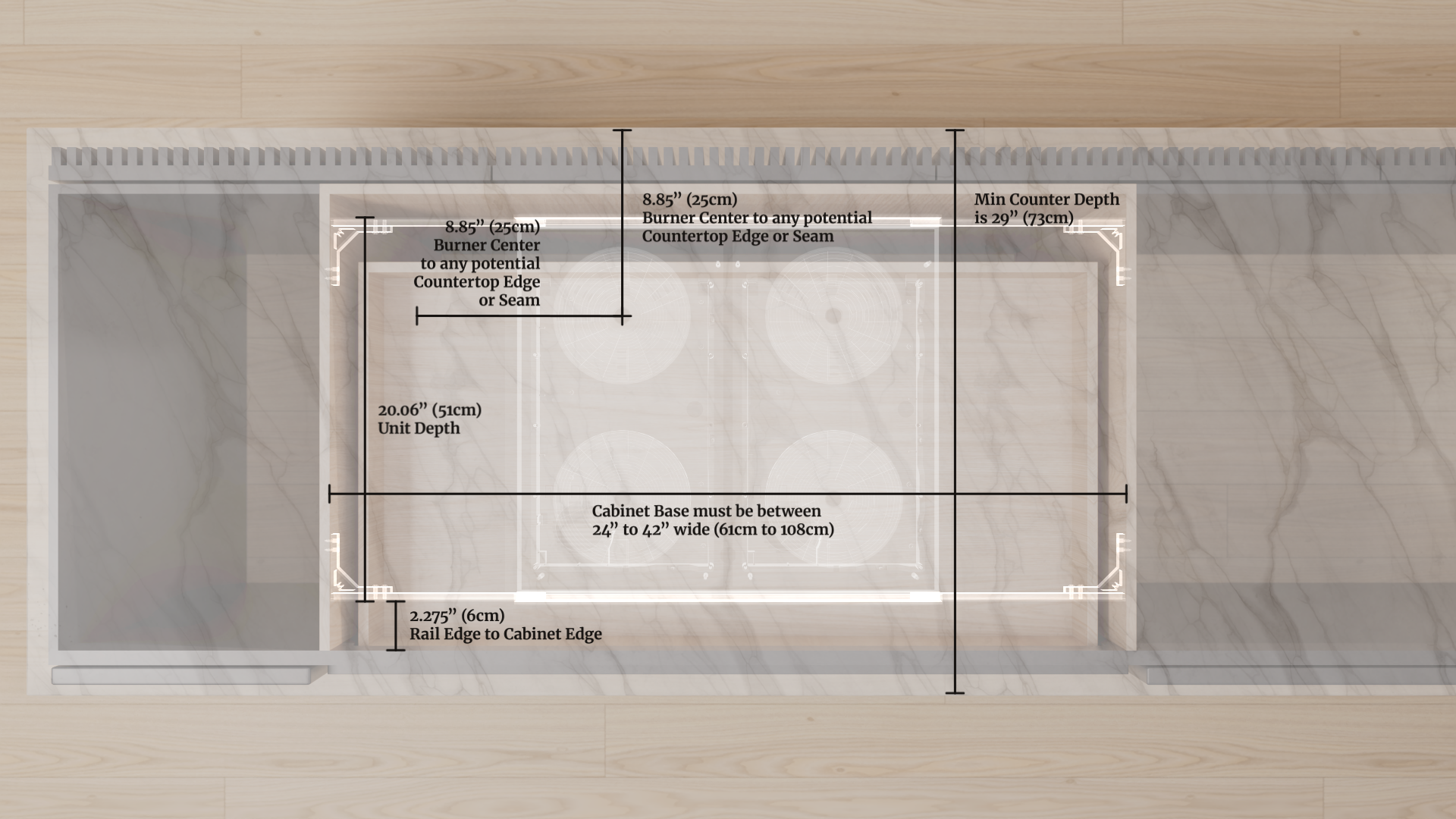

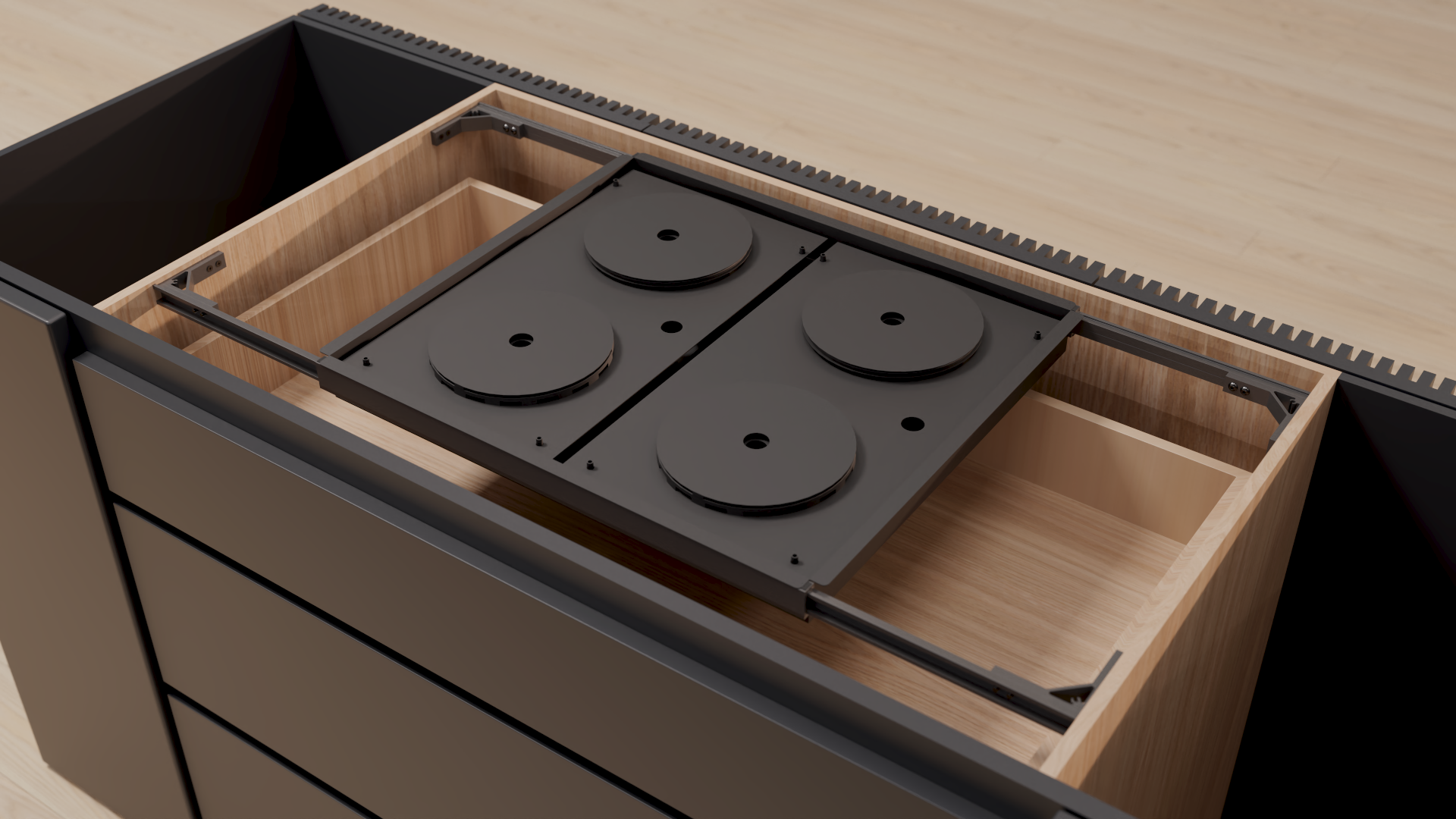

- Designed for Under-mount installation for any countertop surface in any way possible.
- 30 amp needed for 220v
Model Number: 8140-257-001
APPLICATIONS
4 Burner unit can be used in these options and materials:
- Typical House Kitchen
- Multi-Family (Apartments)
- Boats / RVs / Airplanes
- Tiny Houses
- Outdoor Kitchens
- Entertaining Islands or Tables
- Cooking Carts
- Materials suggested – Porcelain
ELECTRICAL AND MECHANICAL SPECIFICATIONS
|

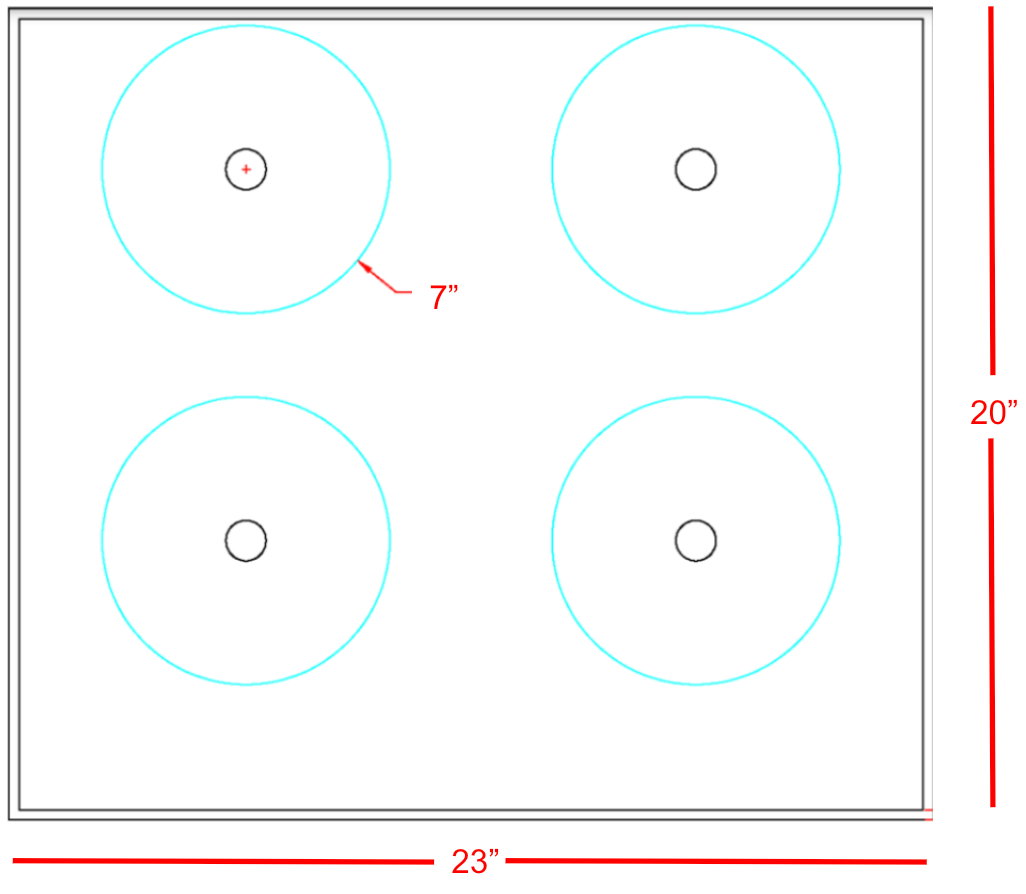

Dimension |
Description |
|
Dimension |
578 x 507 x 55mm (Approx. 22 3/4 x 20 x 2 3/16) |
|
Bottom Size |
570 x 490 x 49.5mm (Approx. 22 7/16 x 19 5/16 x 2) |
|
Recommended material |
Max thickness is 1.5cm Porcelain. |
|
Controller top dimensions: |
289x84x23mm (Approx: 11 3/8 x 3 5/16) |
|
Controller bottom dimensions: |
258x60mm (Approx: 10 1/4 x 2 3/8) |
|
Connection |
Description |
|
AC Input |
220/240Vac 50/60HZ |
|
Wattage |
4,000 W ( Total Shared ) Max at Breaker |
|
Power
|
1200w + 1200w + 1200w + 1200w |
|
Platen Burner Size |
180mm |
| Connector plug | Nema 15-30 |
TEMPERATURE
|
Operating Cooking Temps |
97°F min /400 °F max. (36°C min / 205°C max.) |
WARRANTY
INVISACOOK – 4 Burner Unit – Individual is covered by a two-year consumer warranty that provides product replacement only and a three-year extended warranty to be purchased. Please visit Invisacook.com/warranty for more information.
PRODUCT REGULATORY REQUIREMENTS
Intended Application – This product is intended for indoor or outdoor covered use, not for use in inclement weather.
PRODUCT SAFETY
IEC60950-1 (International)
Product Downloads:
Installation and instruction manual
-
