DESCRIPTION

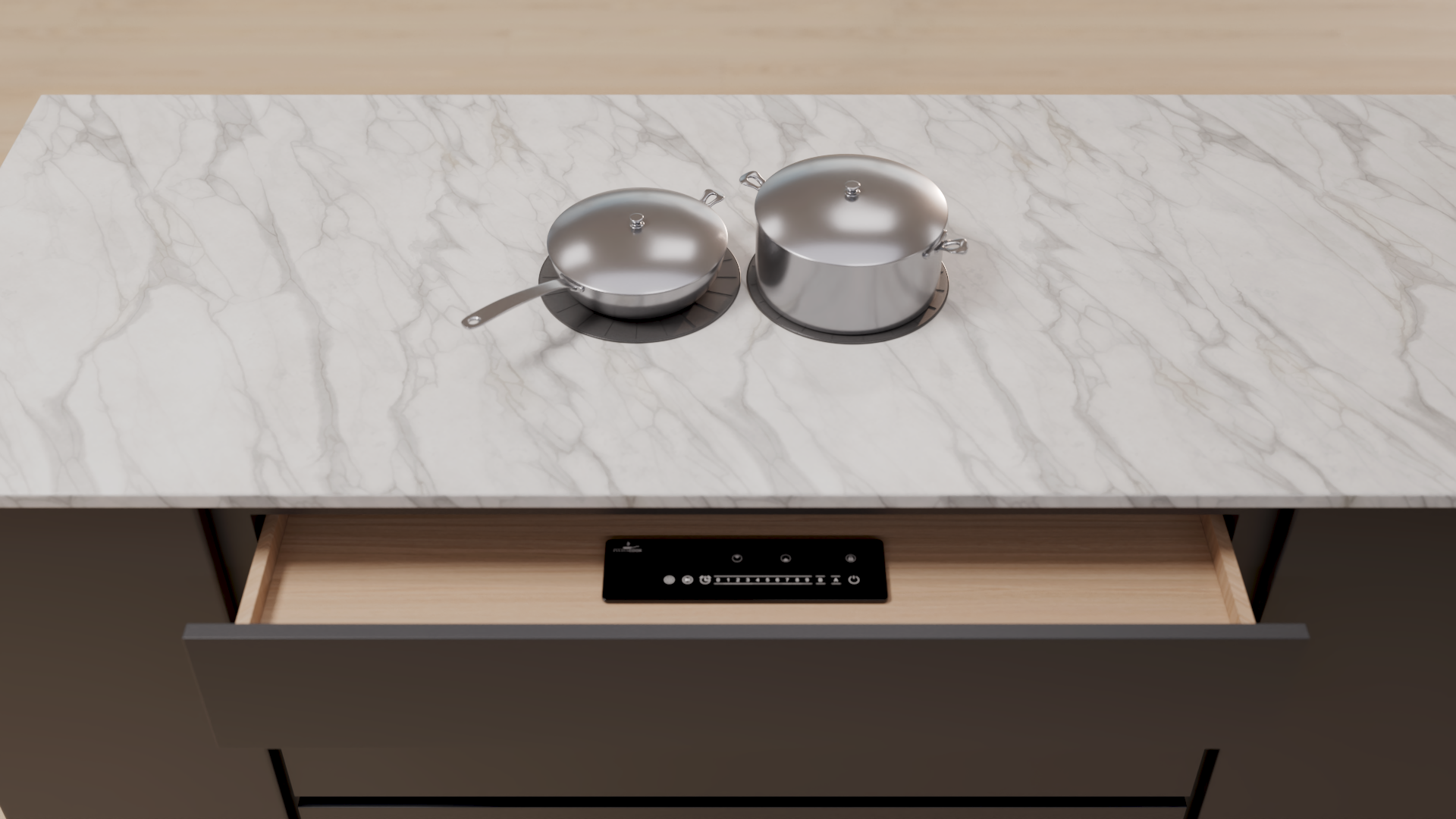

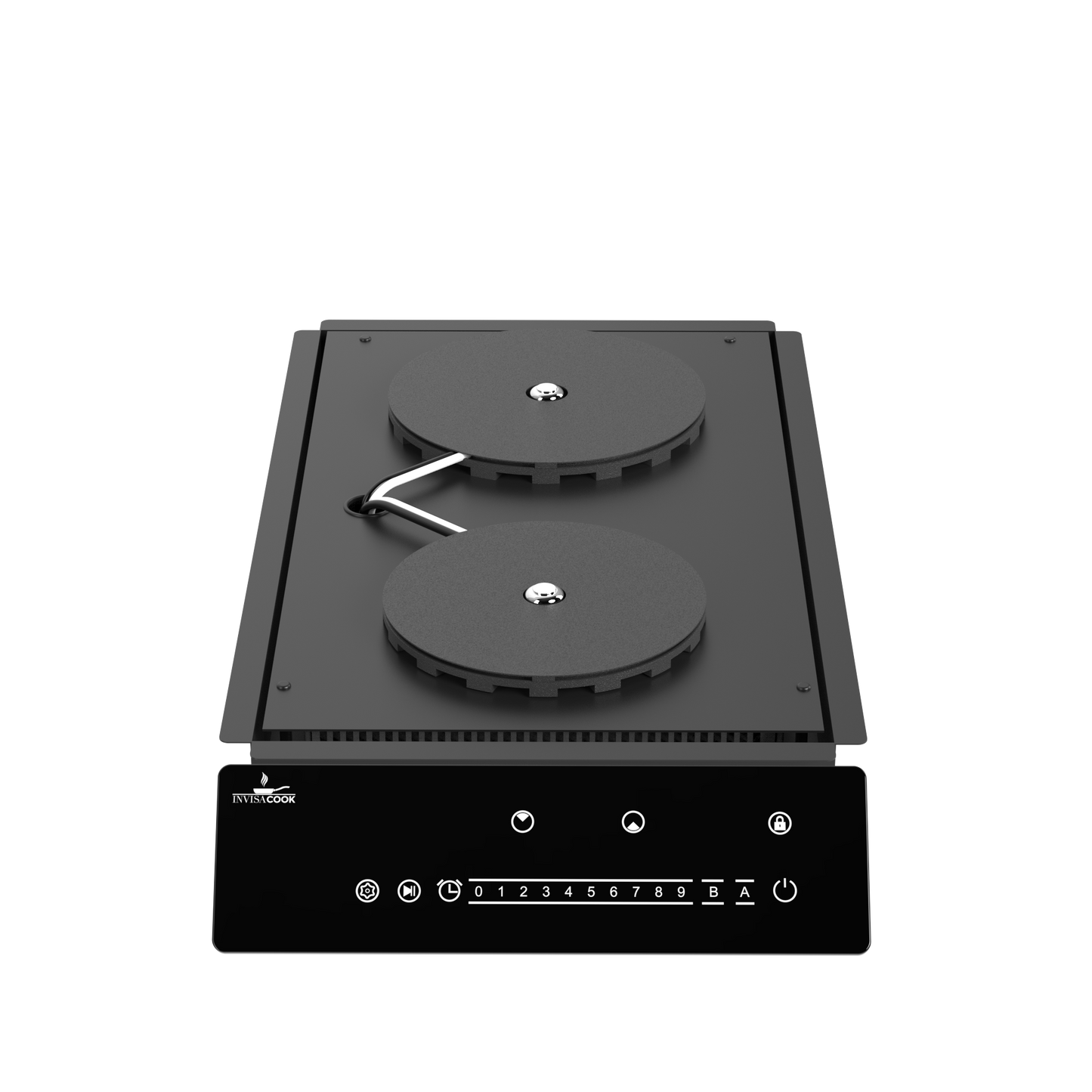

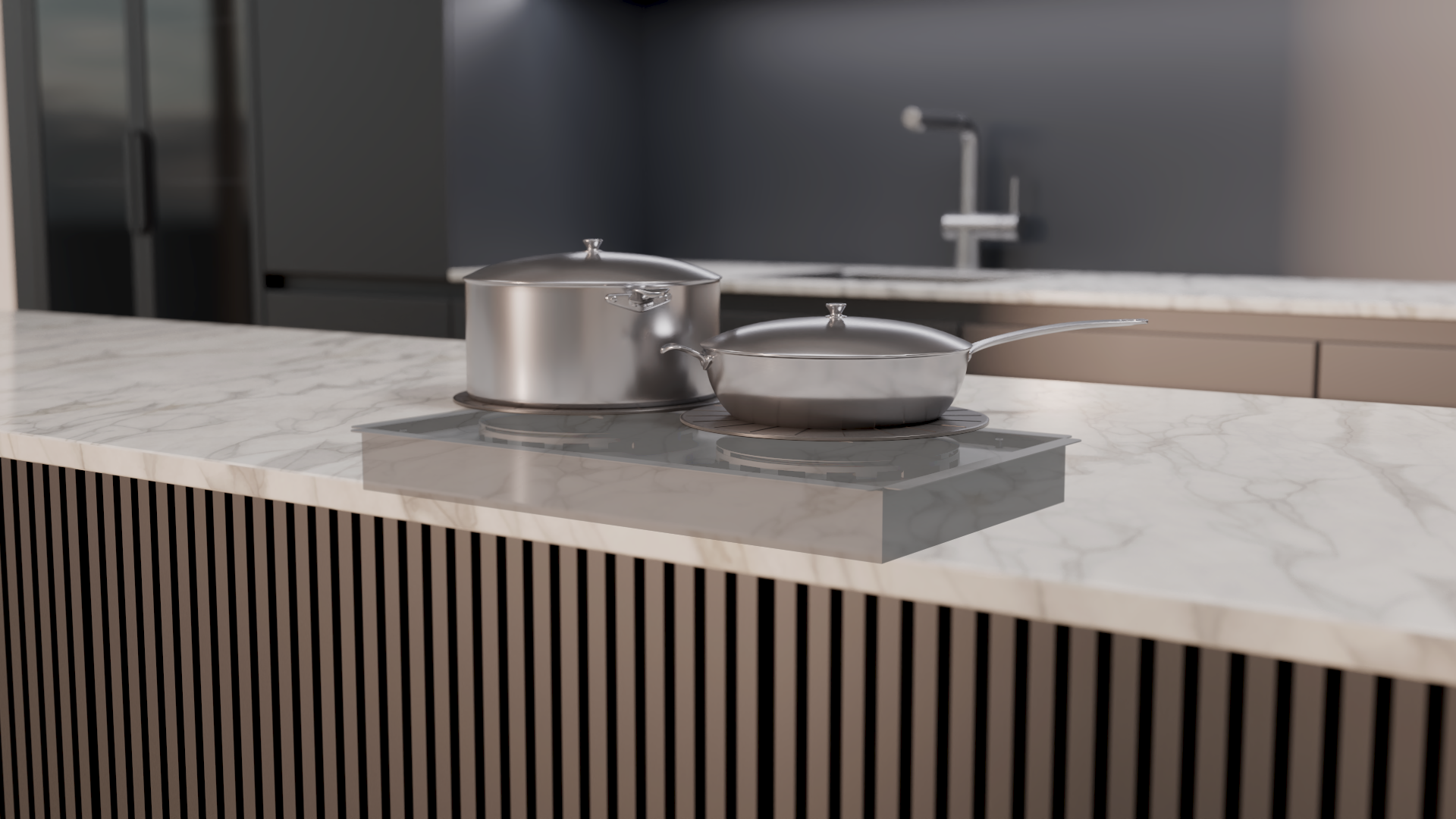

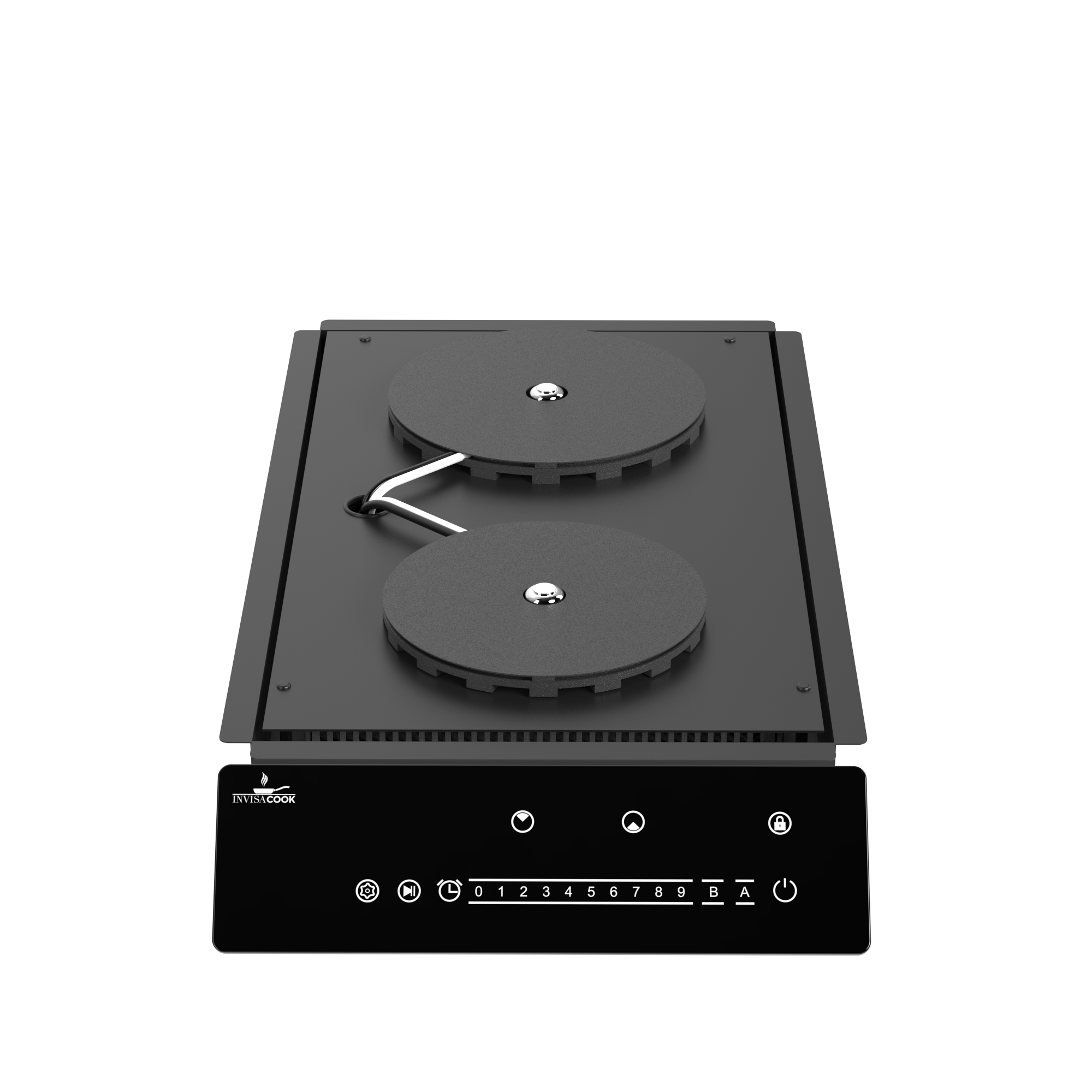

The Invisacook 2 Burner creates effortless meals with its invisible self-contained design. Prepare food with ease and cook through your porcelain countertop to make the most of your kitchen space.
In a matter of moments after heating your pans evenly and efficiently, present your food in the very same spot!

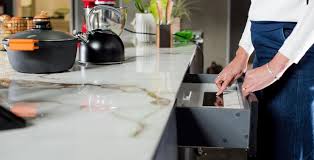

As an added convenience, your burner can also be controlled manually or through Wi-Fi using the Invisacook App.
Sizes Available
Invisacook Pans
Countertop materials:
Two countertop materials are recommended to be used with Invisacook:
Ultra-compact porcelain material that is 12mm thick brands such as (Magnifica, Sapienstone, Infinity Surfaces, Lapitec, Laminam, Neolith etc….). We recommend porcelain for best results.
Some other ultra compact surfaces and natural stones such as quartzite that is heat resistant can work case by case but are not recommended due to possible fragile nature of the stone or uneven heat distribution. For all natural stone materials, please refer to the Natural Stone Disclosure.
*Popular man made quartz countertops or natural marble countertops are not supported. Dekton does not warranty the 5 burner unit Invisacook.
FEATURES
- 2 separate burning unit elements
- Power Boost option for faster speed.
- Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.

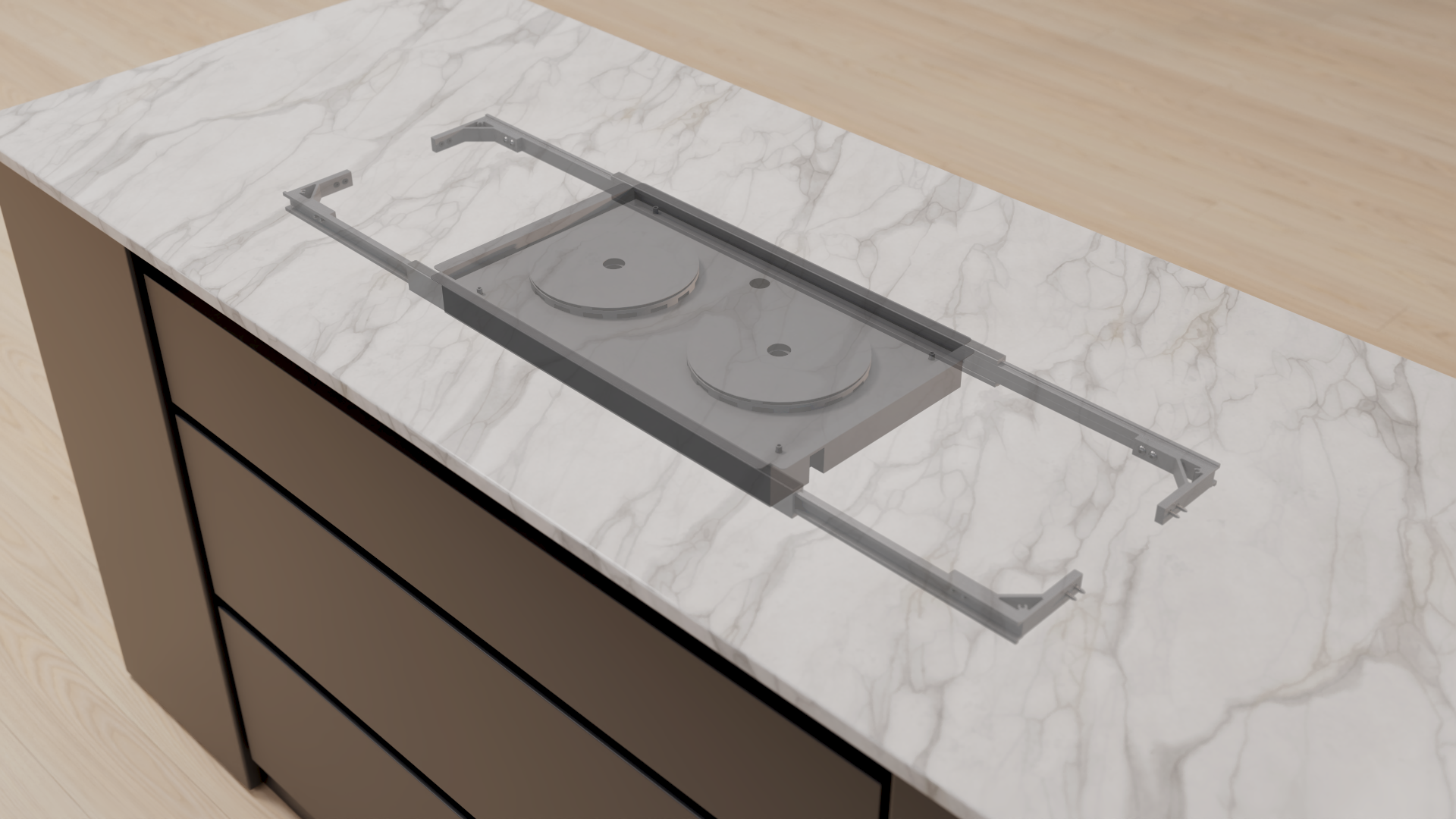

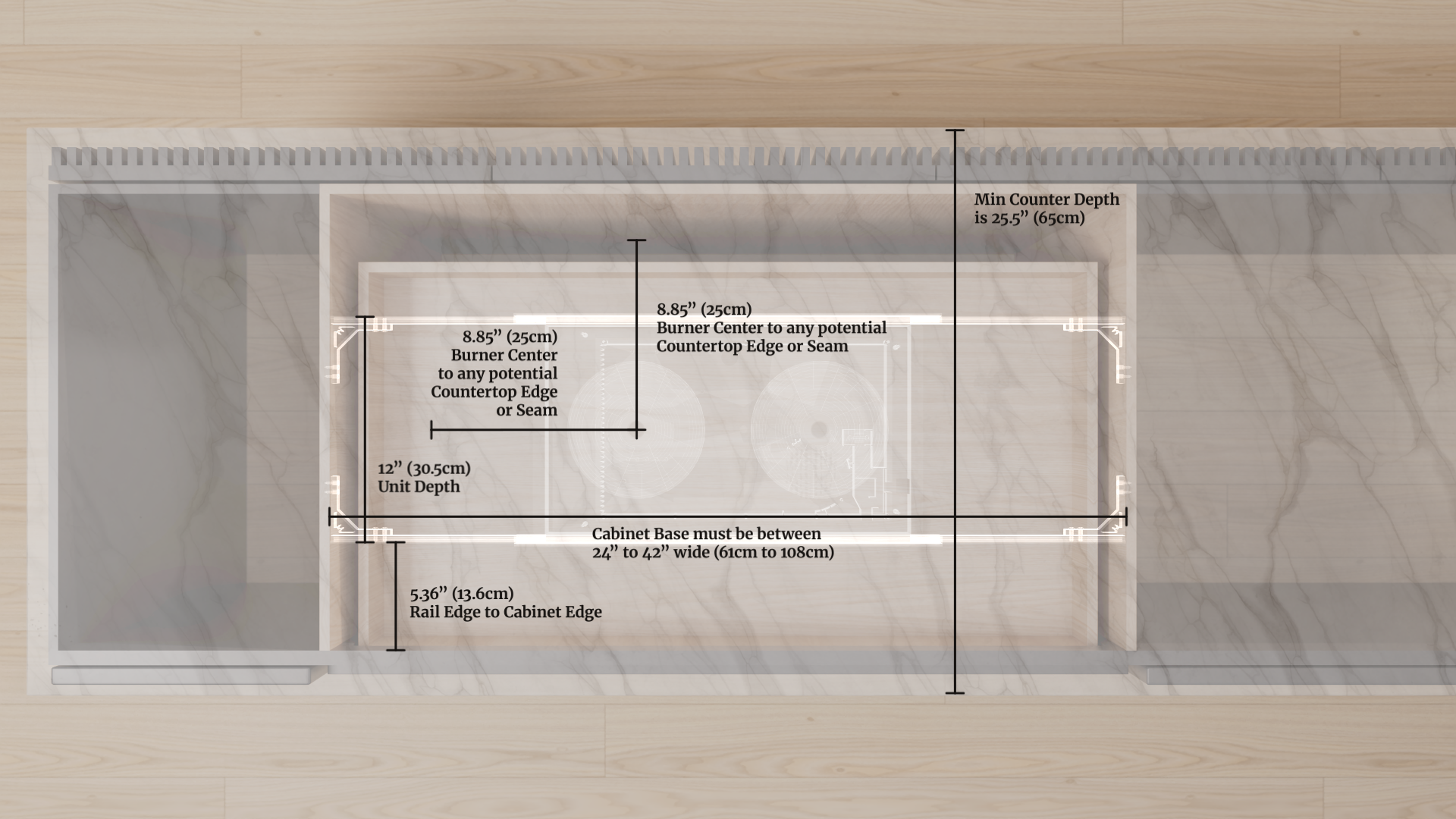

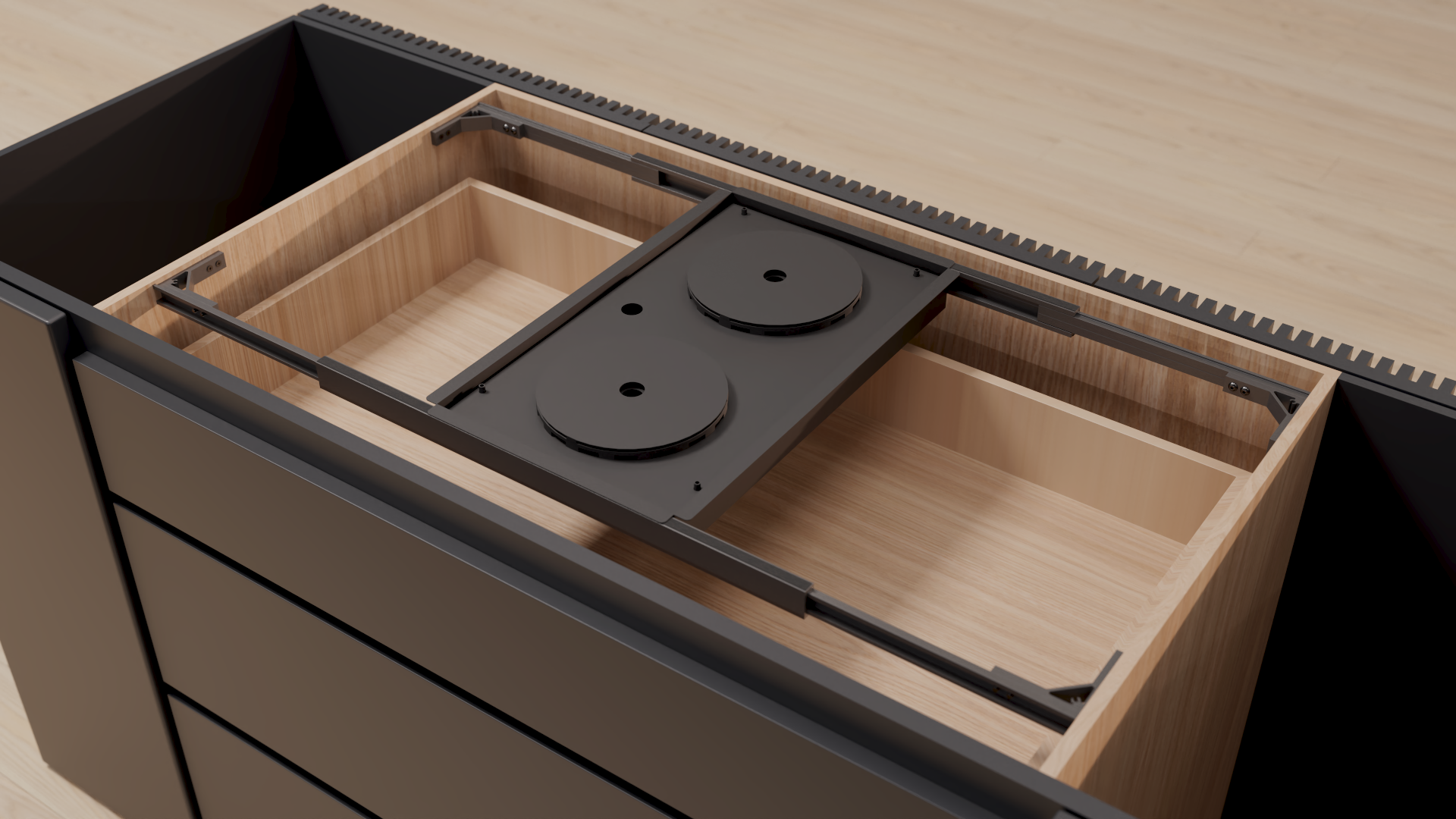

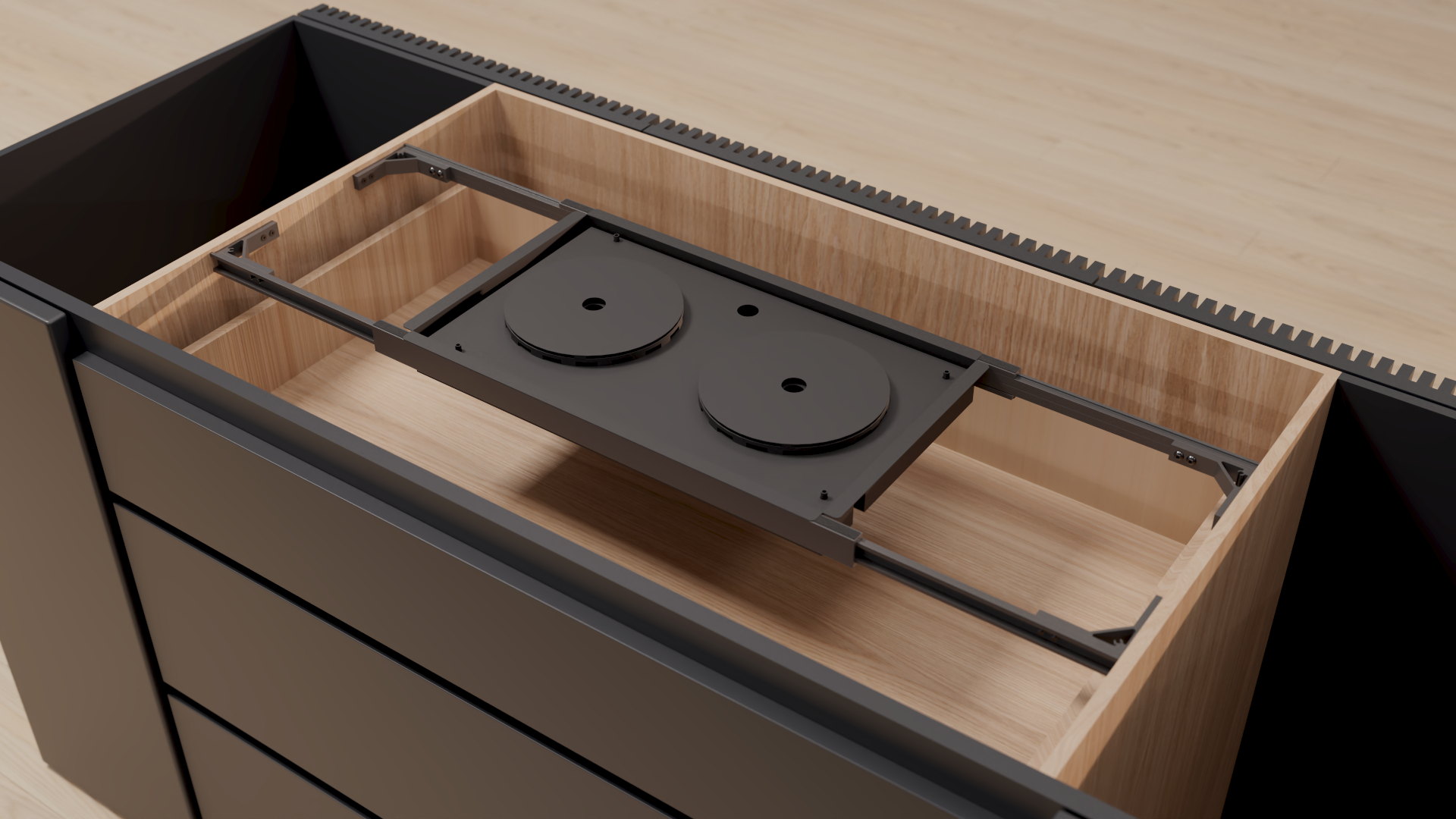

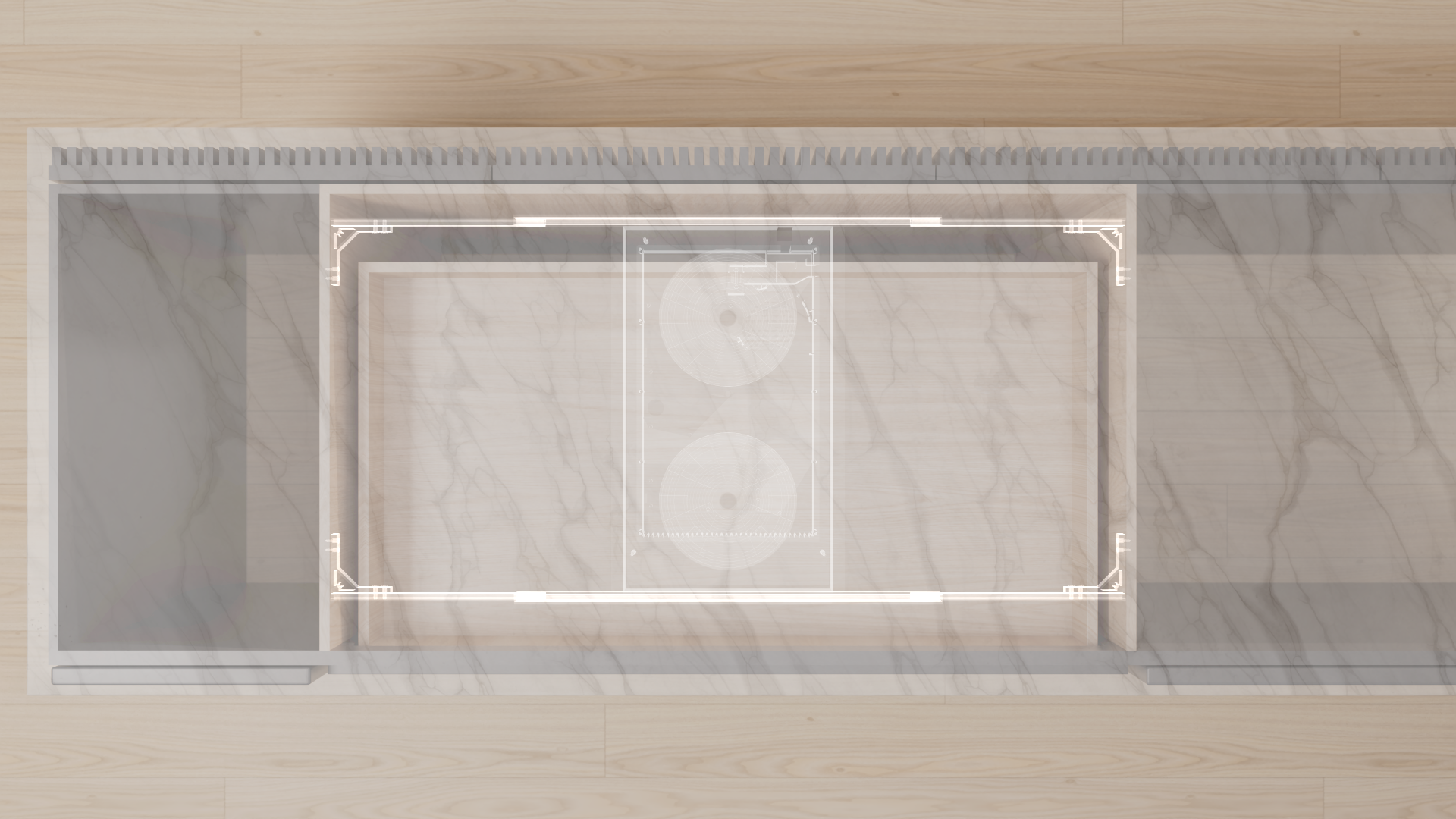

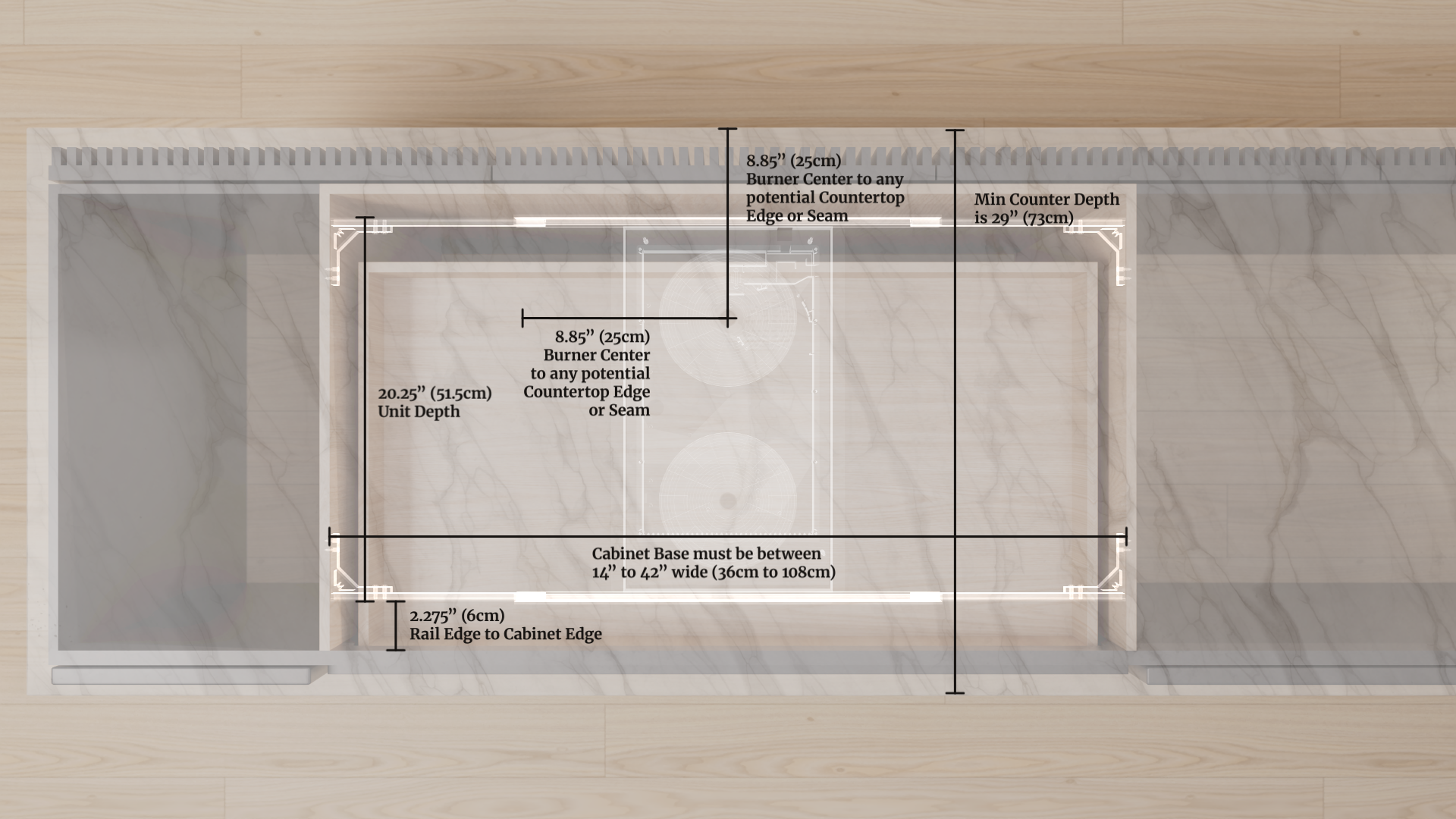

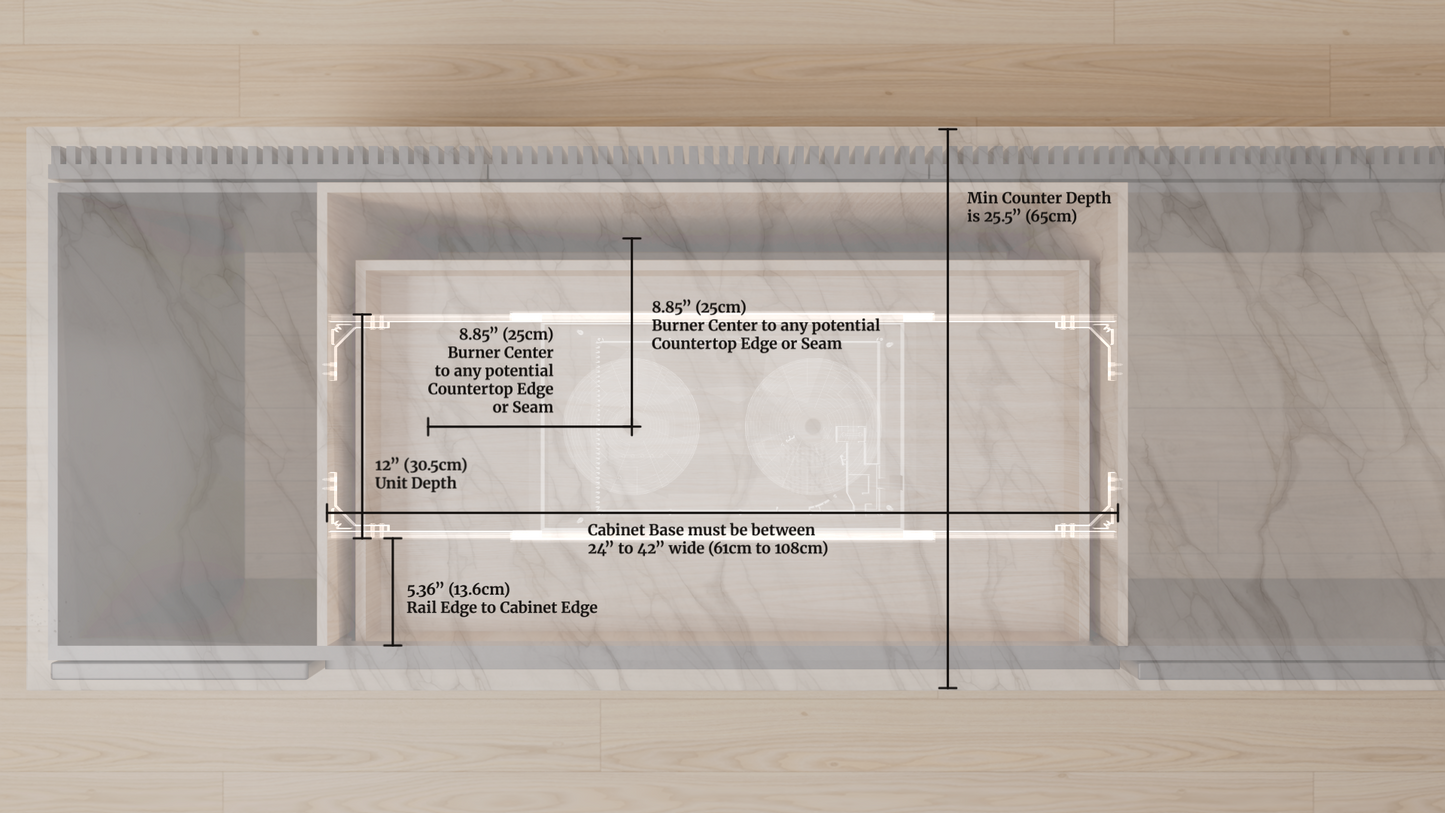

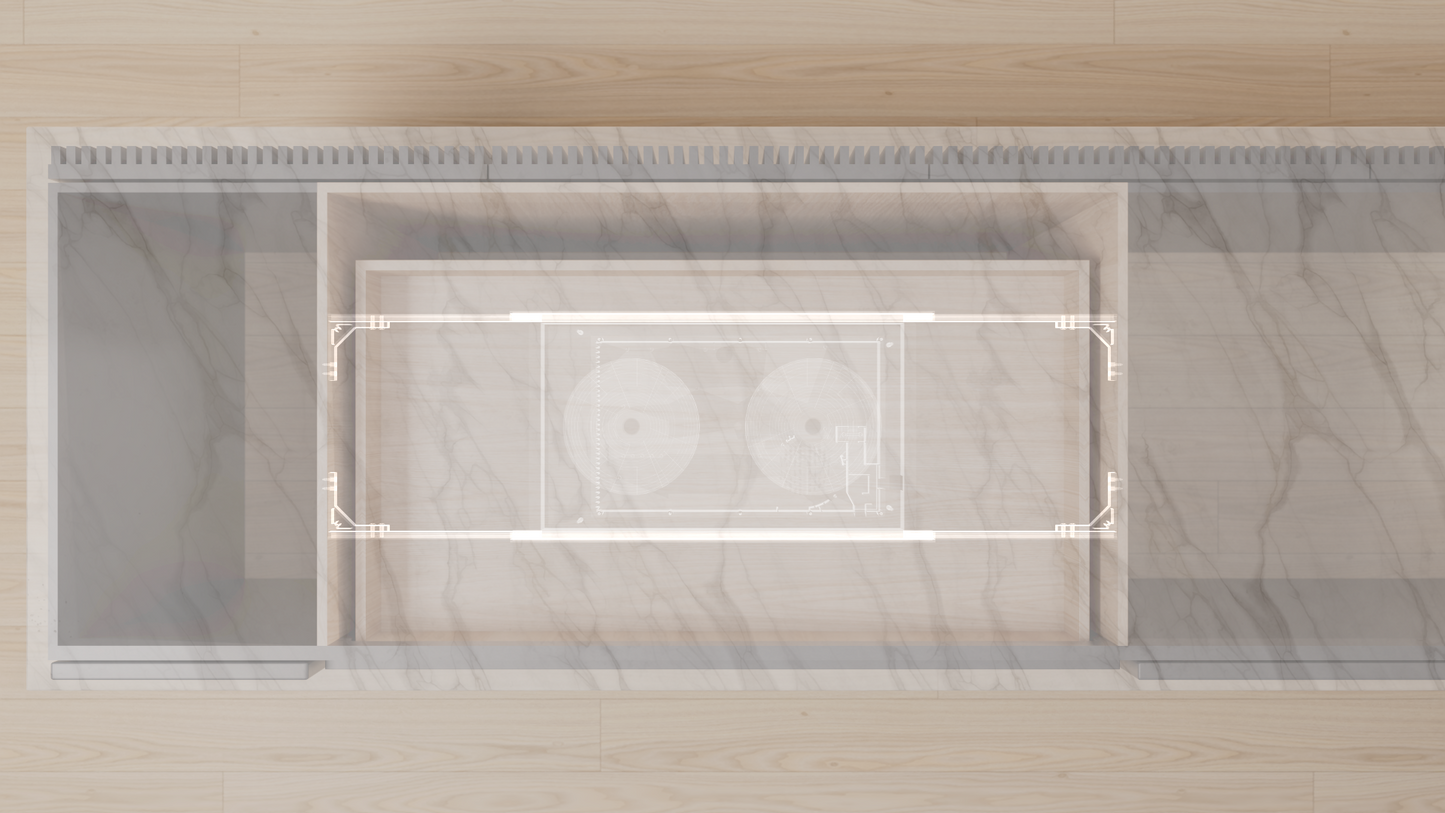

- Designed for Under-mount installation
- 30 amp needed for 220v
Model Numbers:
110V = 8120-256-001
220V = 8121-257-001
APPLICATIONS
2 Burner unit can be used in these options and materials:
- Typical House Kitchen
- Multi-Family (Apartments)
- Boats / RVs / Airplanes
- Tiny Houses
- Outdoor Kitchens
- Entertaining Islands or Tables
- Cooking Carts
- Materials suggested – Porcelain
ELECTRICAL AND MECHANICAL SPECIFICATIONS

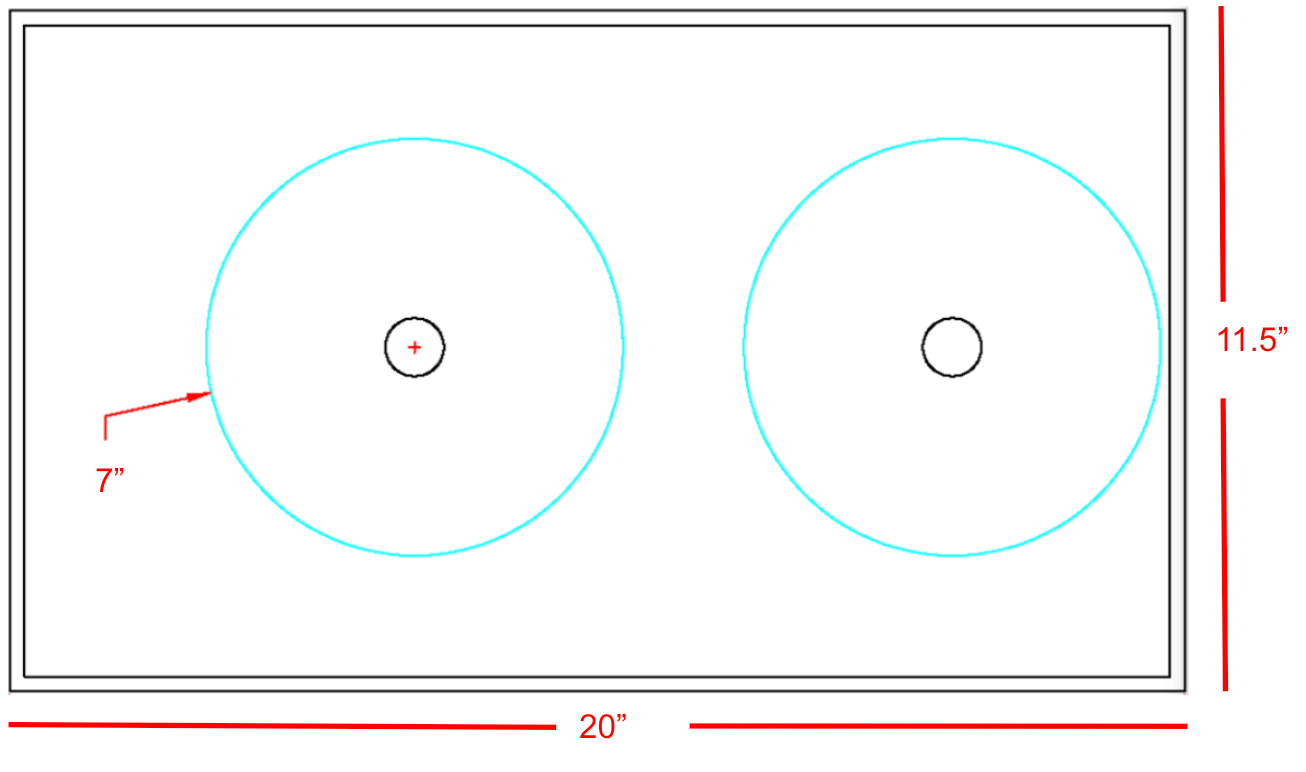

Dimension
Description
Dimension
507 x 293 x 55mm (20 x 11 1/2 x 2 3/16)
Bottom Size
490 x 285 x 49.5mm (19 5/16 x 11 1/4 x 2)
Recommended material
Max thickness is 1.5cm porcelain

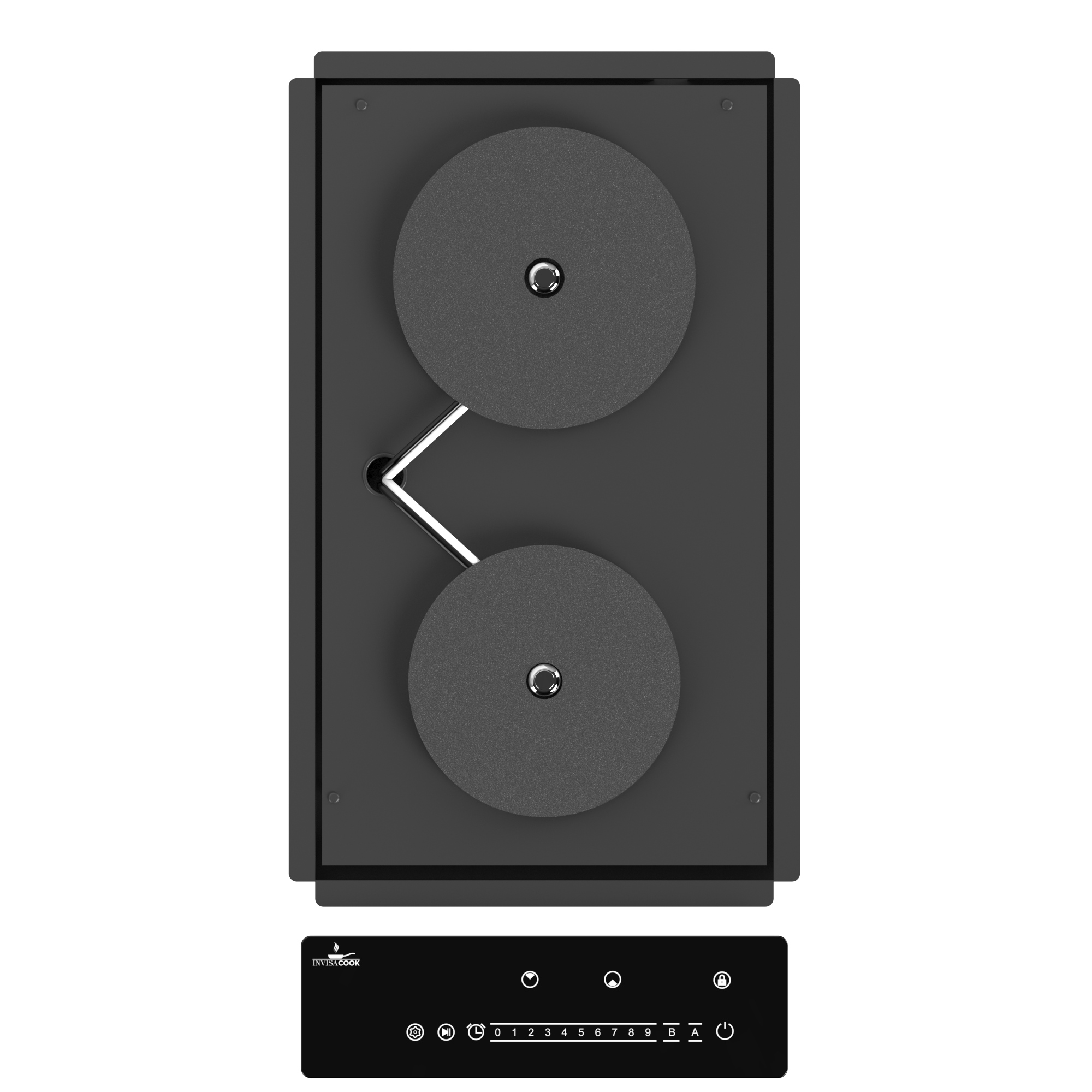

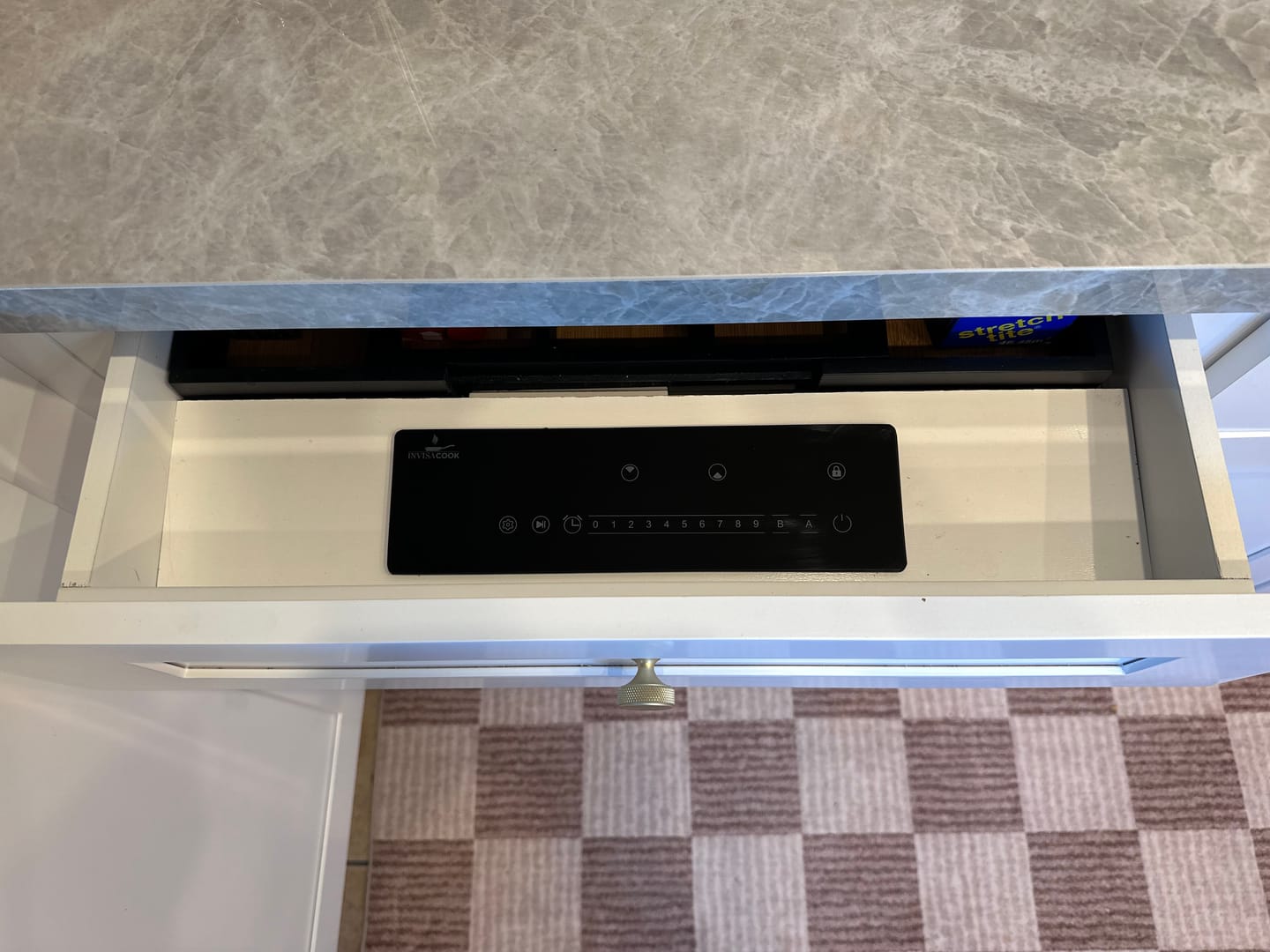

Controller top dimensions:
289x84x23mm (Approx: 11 3/8 x 3 5/16)
Controller bottom dimensions:
258x60mm (Approx: 10 1/4 x 2 3/8)
Connector plugRegular grounded 110V
220V
Connection
Description
AC Input
220/240Vac 50/60HZ
Wattage
2,000 W ( Total Power Shared )
Power
Platen Burner Size
1200w + 1200w (Up+Down)
180mm + 180mm
Connector plugNema 15-30
110V
Connection
Description
AC Input
110/120 V
Wattage
1,200 W ( Total Power Shared )
Power
1200w + 1200w (Up+Down)
Platen Burner Size180mm + 180mm
Product Downloads:
2 burner spec sheet
Installation and instruction manual
Invisamat brochure
WARRANTY
INVISACOOK – 2 Burner Unit – Individual is covered by a three-year consumer warranty that provides product replacement only and a five-year extended warranty to be purchased. Please visit Invisacook.com/warranty for more information.
PRODUCT REGULATORY REQUIREMENTS
Intended Application – This product is intended for indoor or outdoor covered use, not for use in inclement weather.
PRODUCT SAFETY
IEC60950-1 (International)
