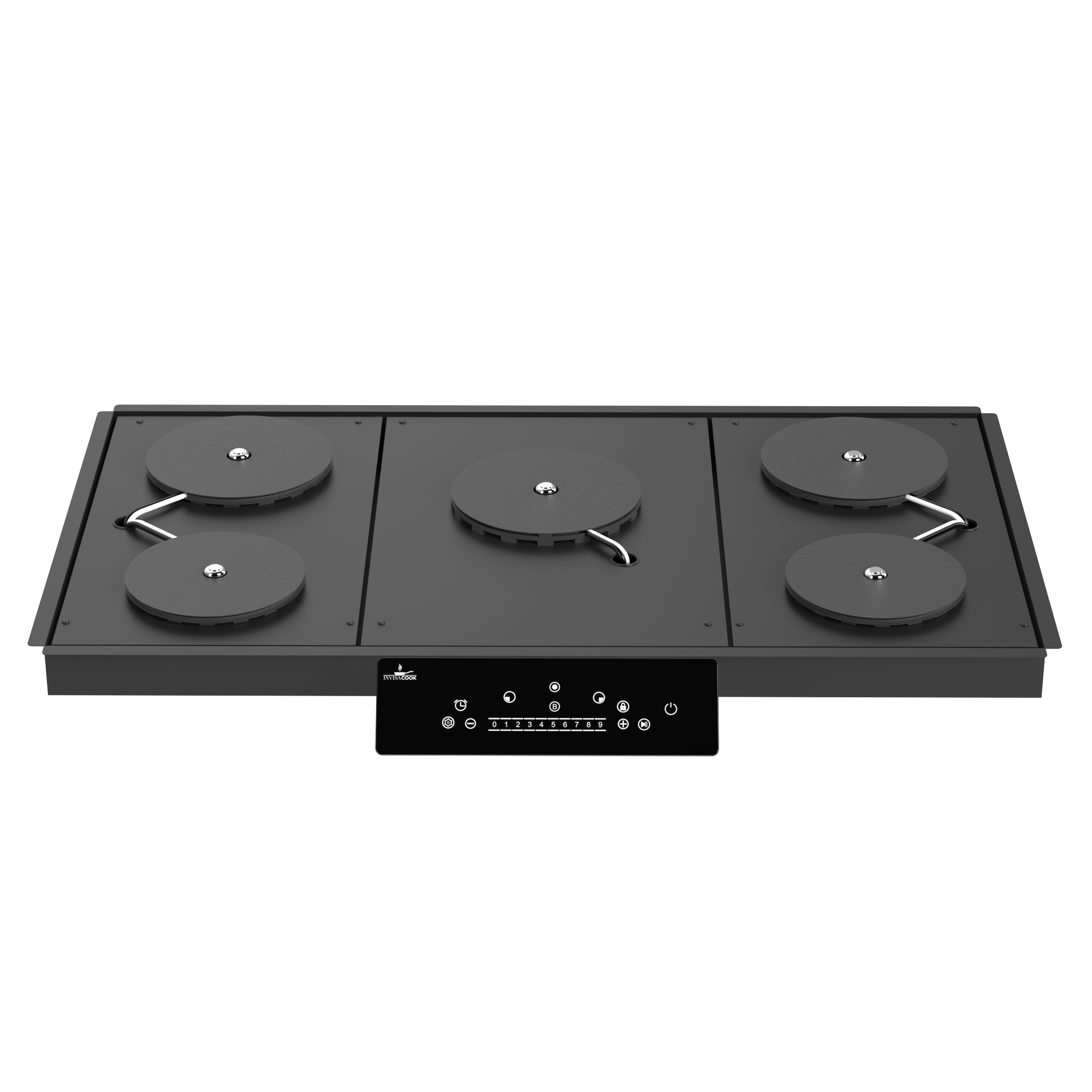

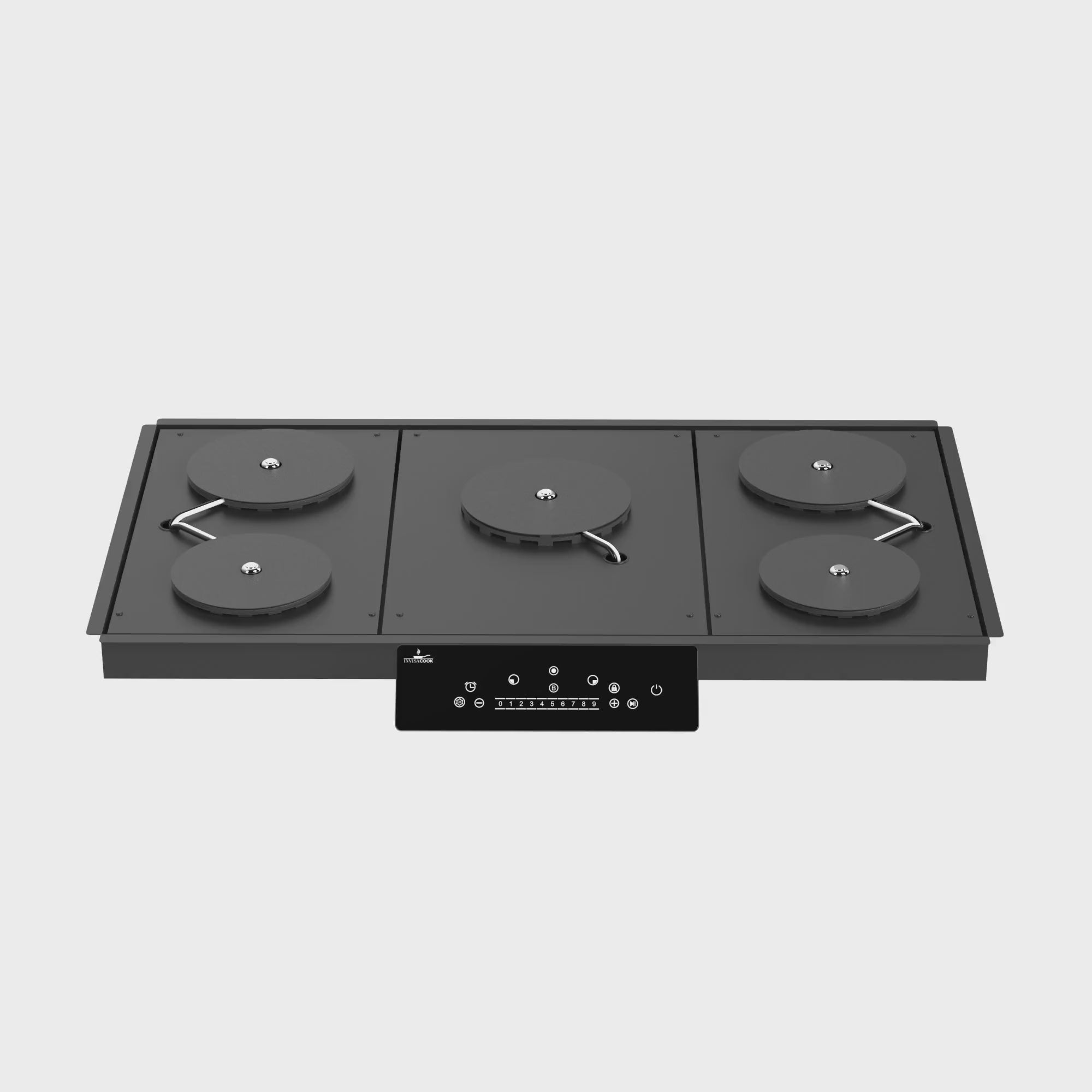

Invisacook 5 Burner 220 V

DESCRIPTION

The Invisacook 5 Burner Unit uses state-of-the-art technology and an ultra-modern design to elevate your cooking experience.

Whether your meal is with family or friends, the self-contained system makes your cooking surface multipurpose.

With its minimalist, ultra-modern design, the 5 induction points enable easy and effortless mealtimes from preparation to service.

Using Wi-Fi and Invisacook App technology, relax in another room as your food cooks. Or you can control your meal manually from the countertop. Use the same space within seconds of heating your meal to finesse and serve.

Sizes Available

• 2 Burner 110V or 220V
• 3 Burner 220V
• 4 Burner 220V
• 4 Burner galley 220V
• 5 Burner 220V

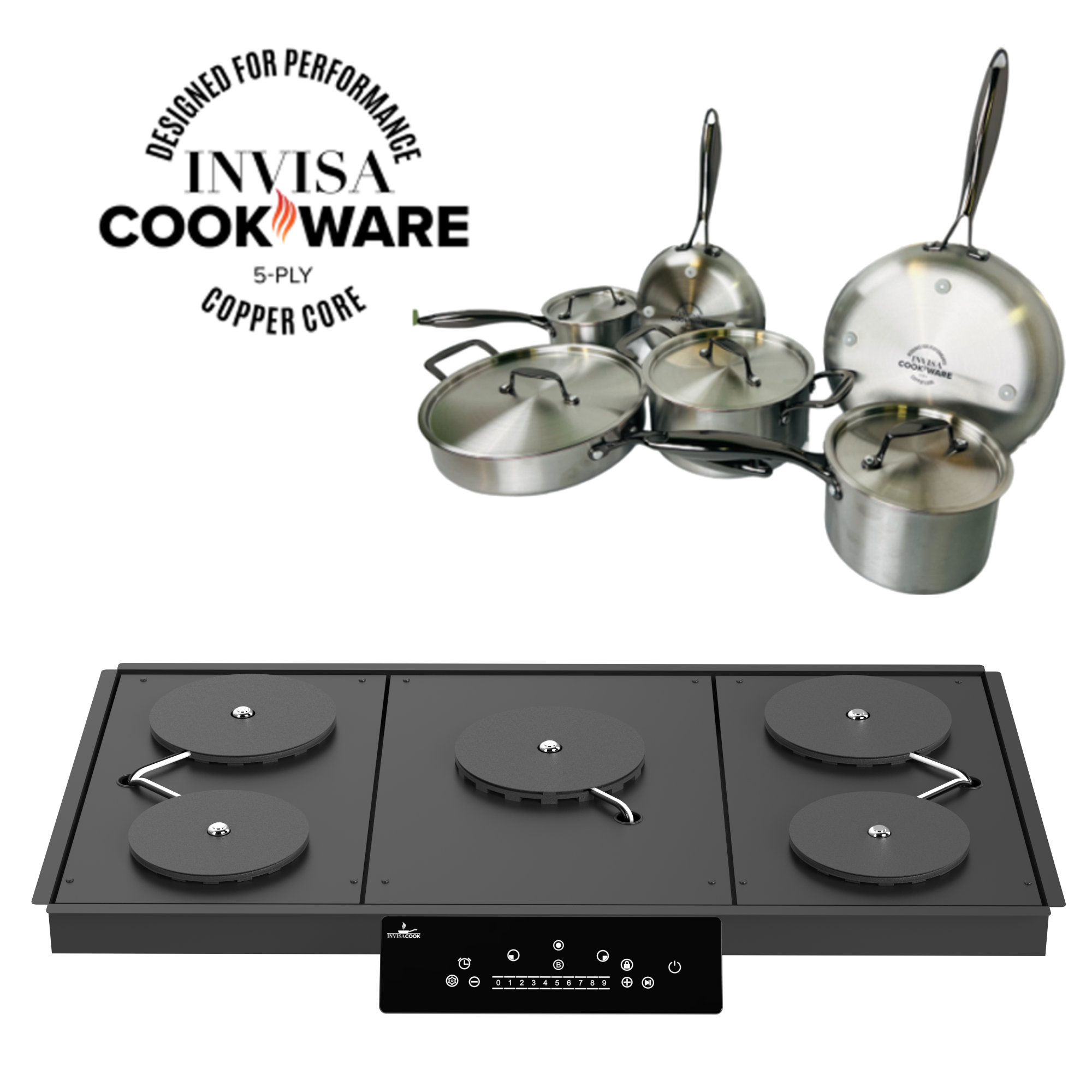

Invisacook Pans

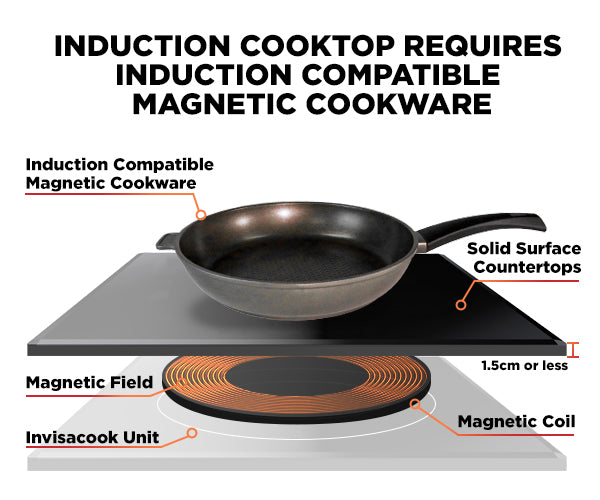

Countertop materials:

Ultra-compact porcelain material that is between 12mm and 20mm thick, brands such as (Magnifica, Sapienstone, Infinity Surfaces, Lapitec, Laminam, Neolith etc….). We recommend porcelain for best results. We recommend porcelain for best results.

Some other ultra compact surfaces and natural stones such as quartzite or granite that are heat resistant can work in case by case situations but are not recommended due to possible fragile nature of the stone or uneven heat distribution. For all natural stone materials, please refer to the Natural Stone Disclosure.

*Popular man made quartz countertops or natural marble countertops are not supported.

Dekton install guide here.

FEATURES

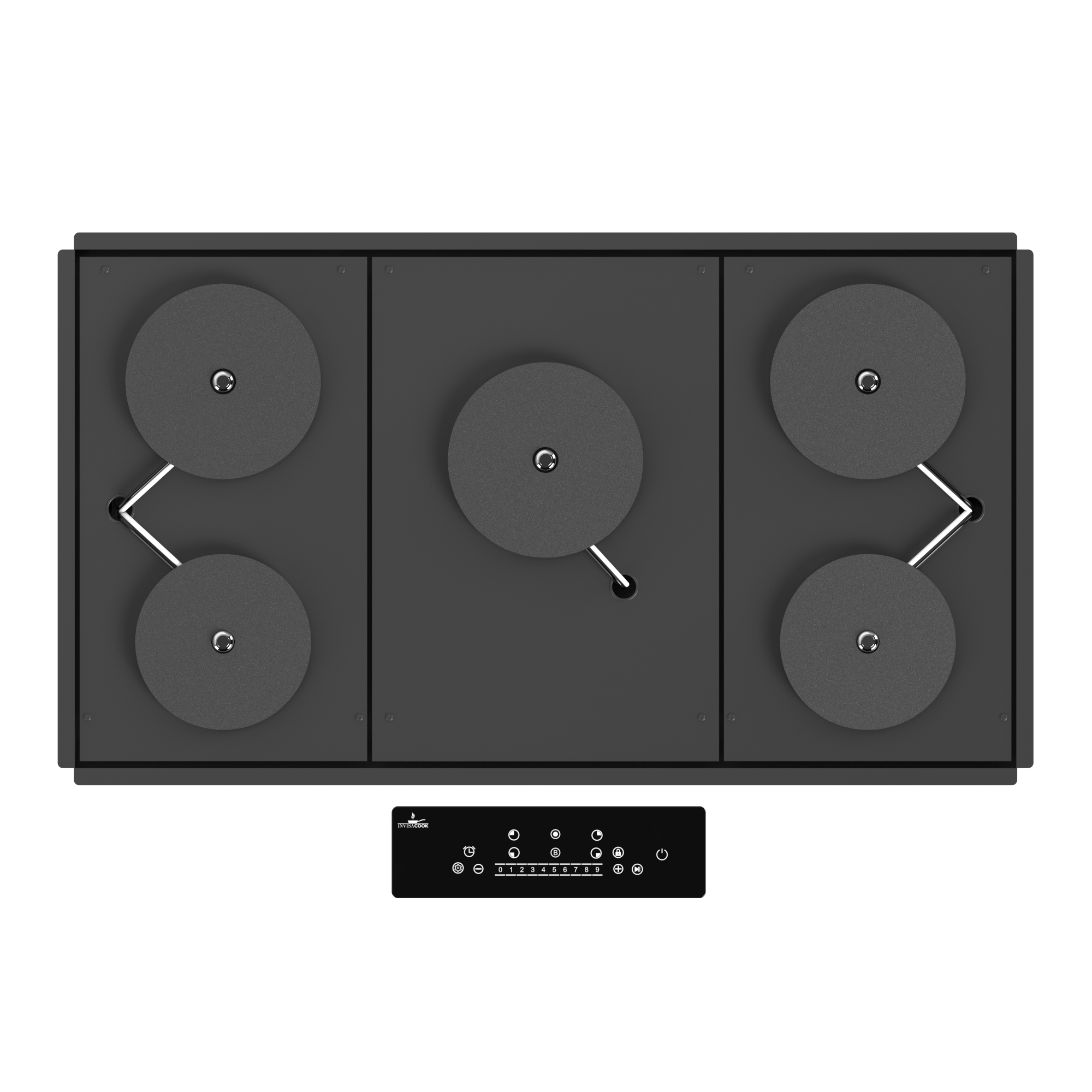

• 5 separate burning unit elements
• Power Boost option for faster speed.
• Wi-Fi capable with the Invisacook App so you can control your unit from anywhere.

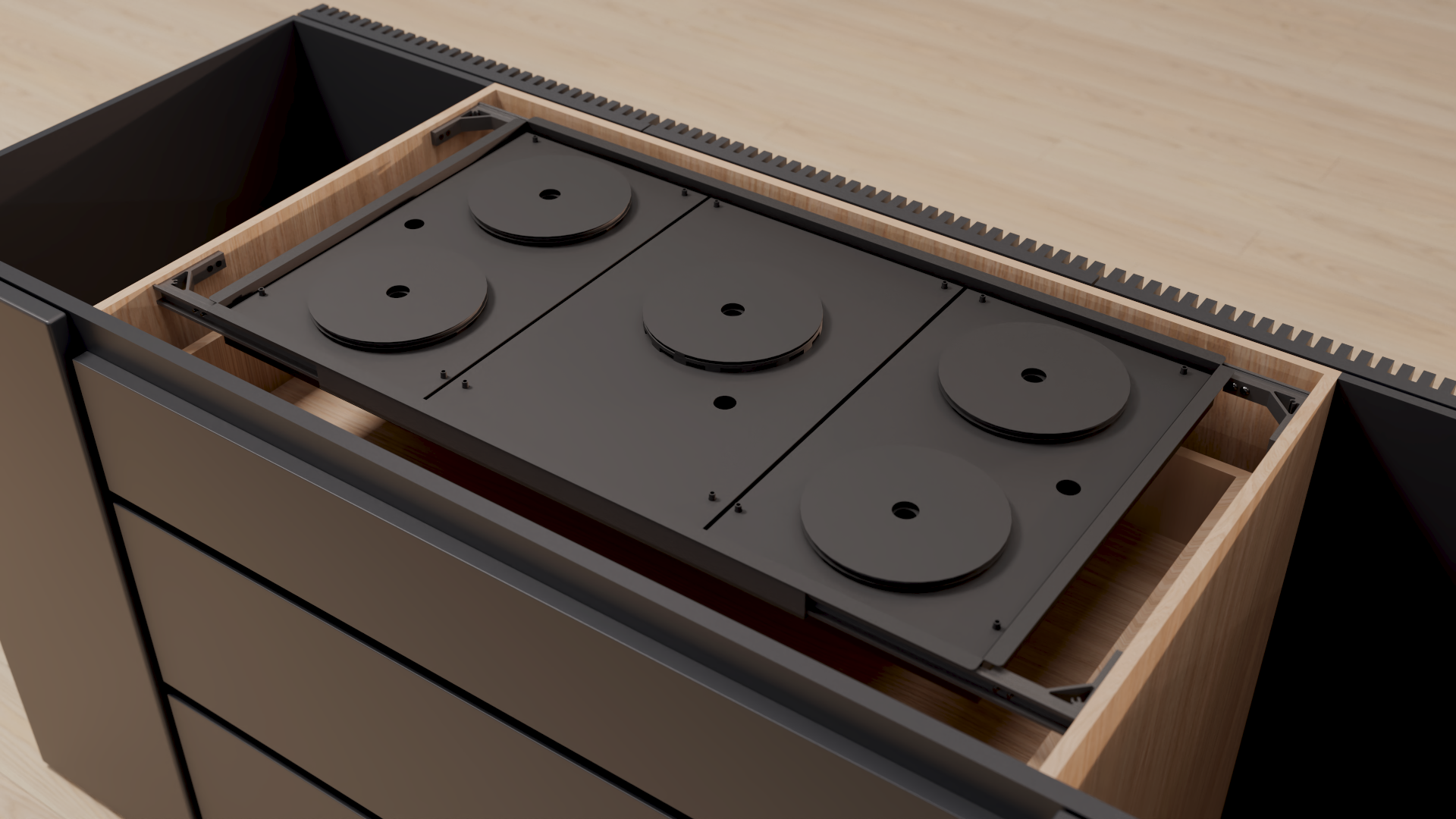

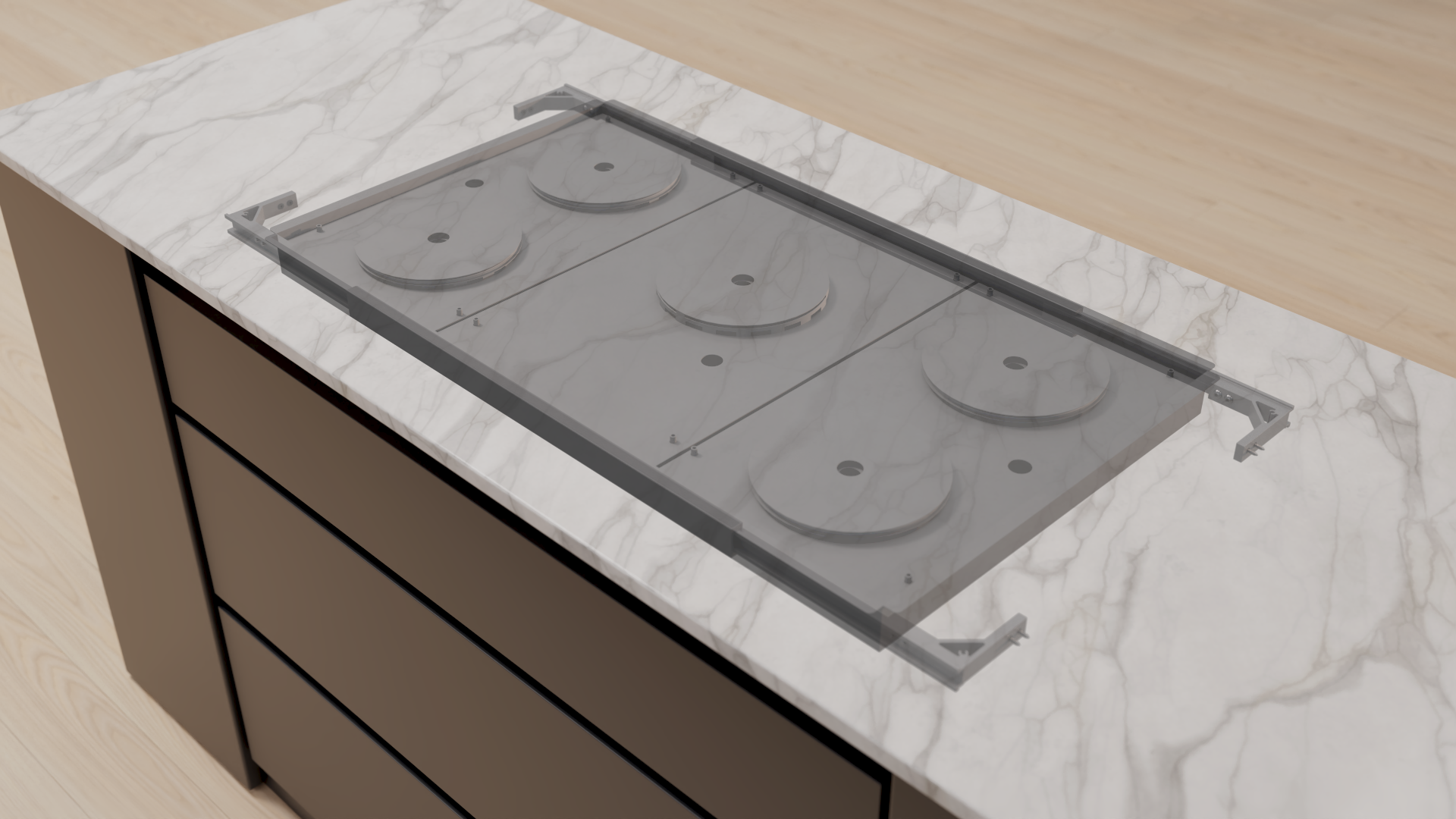

• Designed for Under-mount installation for any countertop surface in any way possible.
• 50 amp needed for 220v

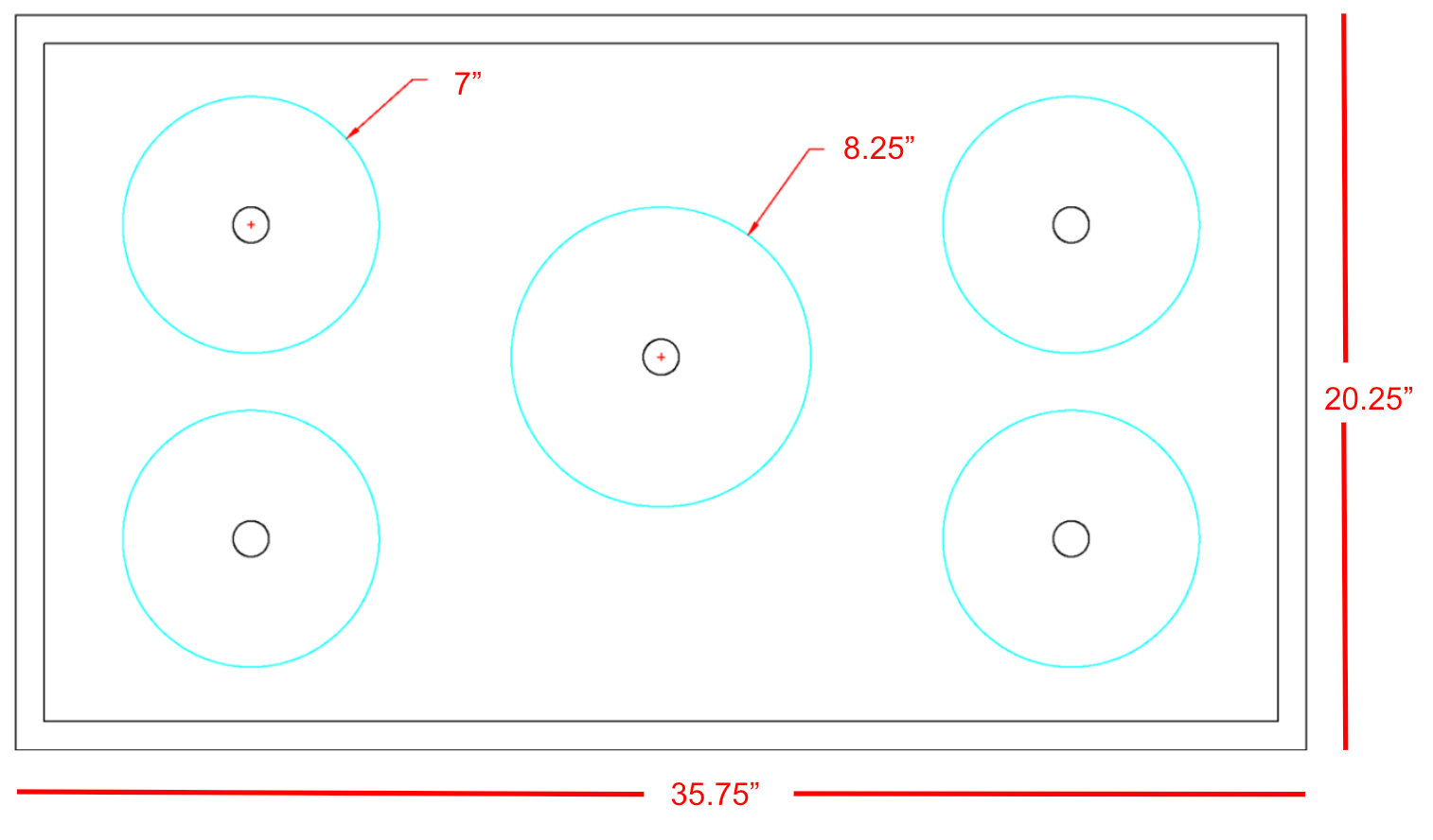

• Burner size 3 x 8.25" 2 x 7"
• Power 3 x 2,000 Watt 2 x 1,600 Watt

Model Number # 8150-256-001

APPLICATIONS

5 Burner unit can be used in these options and materials:

• Typical House Kitchen
• Multi-Family (Apartments)
• Boats / RVs / Airplanes
• Tiny Houses
• Outdoor Kitchens
• Entertaining Islands or Tables
• Cooking Carts
• Materials suggested – Porcelain

WARRANTY

INVISACOOK – 5 Burner Unit – Individual is covered by a two-year consumer warranty that provides product replacement only and a three-year extended warranty to be purchased. Please visit Invisacook.com/warranty for more information.

PRODUCT REGULATORY REQUIREMENTS

Intended Application – This product is intended for indoor or outdoor covered use, not for use in inclement weather.

PRODUCT SAFETY

IEC60950-1 (International)

ELECTRICAL AND MECHANICAL SPECIFICATIONS

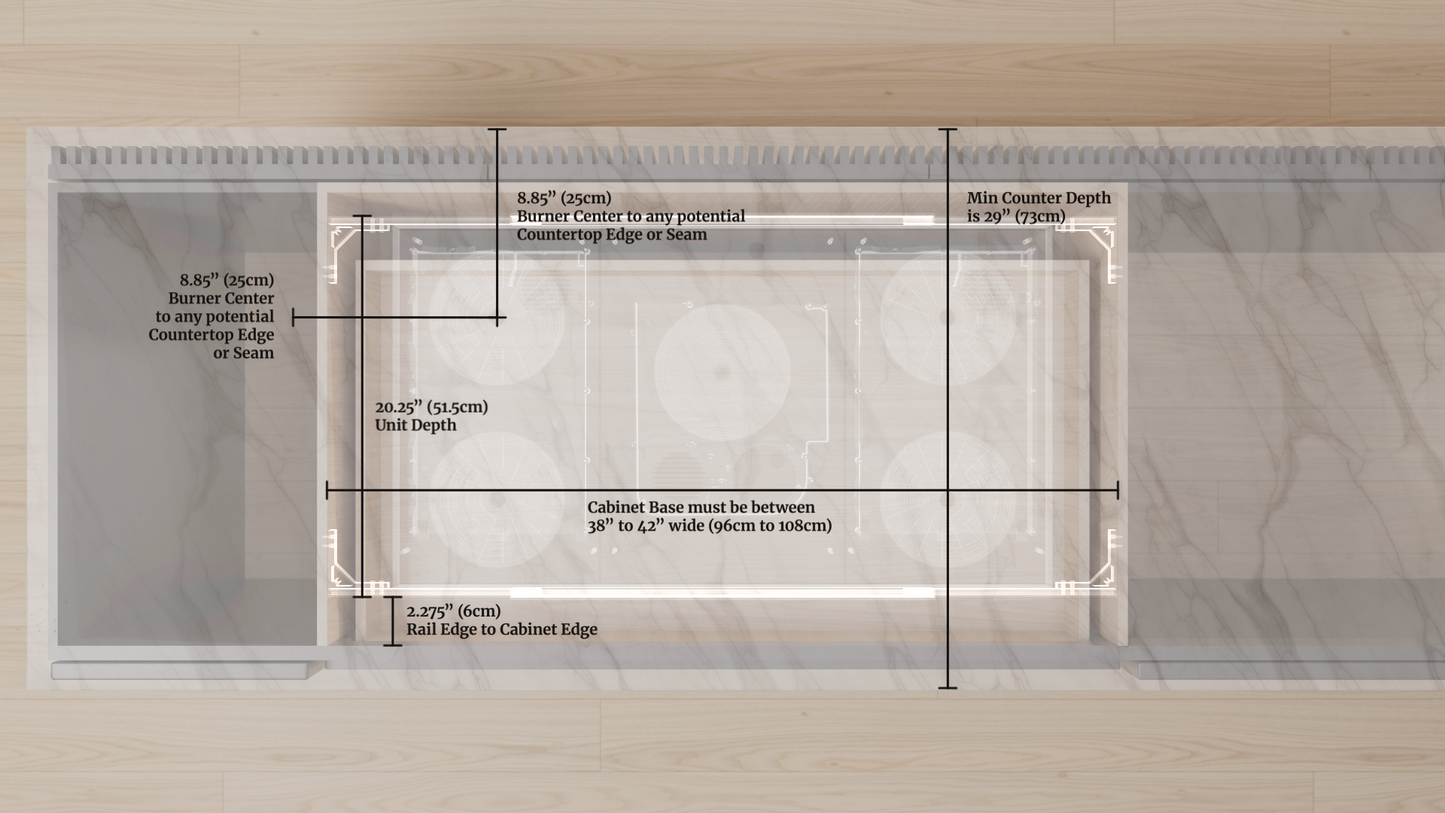

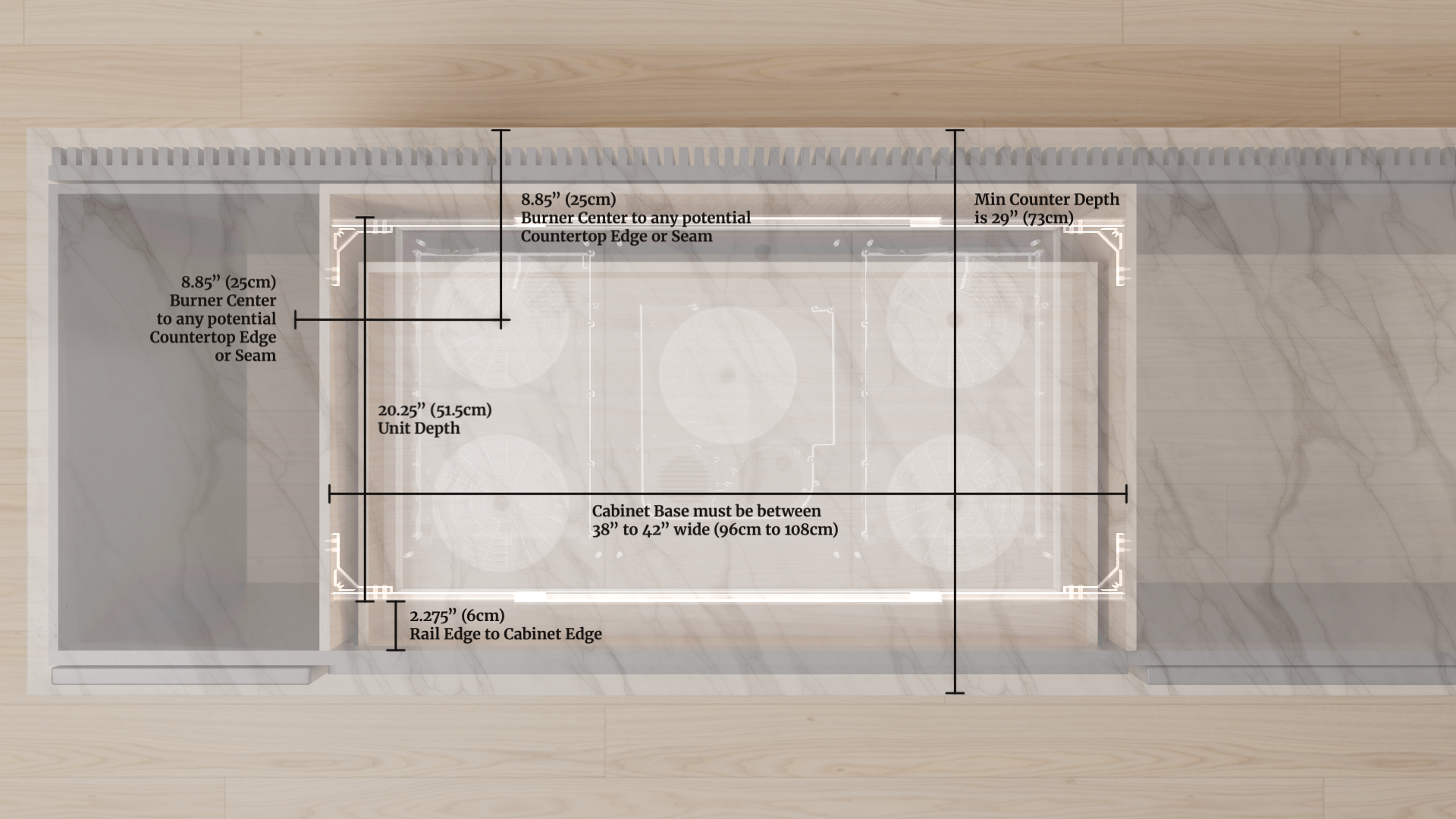

Dimension

905 x 515 x 55mm (Approx. 35 5/8 x 20 9/32 x 2 3/16)

Bottom Size

870 x 480 x 49.5mm (Approx.34 1/4 x 18 7/8 x 2)

Recommended material

Max thickness is 1.5cm Porcelain

Controller top dimensions:

289x84x23mm (Approx: 11 3/8 x 3 5/16)

Controller bottom dimensions:

258x60mm (Approx: 10 1/4 x 2 3/8)

Connection

AC Input

220-240Vac 50/60HZ

Wattage

5,600 W ( Total Power Shared )

Max Power Per Burner

2000w + 1600w + 2000w + 1600w + 2000w

Platen Burner Size

210mm – 180mm – 210mm – 180mm – 210mm

TEMPERATURE

Operating Cooking Temps

97°F min /400 °F max. (36°C min / 205°C max.)
